Product Details:
|
| Panel Model: | AA050AA11 | Panel Brand: | Mitsubishi |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD | Contrast Ratio: | 700:1 (Typ.) |
| High Light: | industrial touch screen display,industrial lcd screen |
||

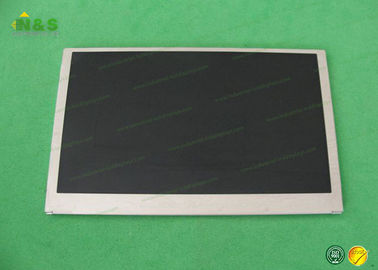

Normally White AA050AA11 Mitsubishi 5.0 inch LCD display panel 89.3×89.3 mm
AA050AA11 Information
| Panel Model | AA050AA11 |
| Panel Brand | Mitsubishi |
| Descrition | a-Si TFT-LCD ,5.0 inch, 640×640 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 89.3×89.3 mm |
| Outline | 103.8×105.8×12.4 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 700:1 (Typ.) |
| Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 40% |
| Response Time | 4/12 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 2 strings WLED Without Driver |
| Signal Interface | CMOS (1 ch, 6/8-bit) , 45 pins |
| Input Voltage | 3.3V (Typ.) |
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
AA050AA11 Mechanical Features
| Dot Resolution | 640(RGB)×640 |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 182 PPI |
| Aspect Ratio | 1:1 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0465×0.1395 mm (H×V) |
| Pixel Pitch | 0.1395×0.1395 mm (H×V) |
| Weight | 155g (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 89.3×89.3 mm (H×V) |
| Bezel Area | 91.28×91.28 mm (H×V) |
| Outline Dimension | 103.8×105.8 mm (H×V) |
| Outline Depth | 11.9±0.5 mm |
| Holes & Brackets | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AA150XN21 | Mitsubishi | 15.0" | 1024×768 |
| AA121TD03 | Mitsubishi | 12.1" | 1280×800 |
| AA150XT11-DE-01 | Mitsubishi | 15.0" | 1024×768 |
| AA121XN11-DE-01 | Mitsubishi | 12.1" | 1024×768 |
| AA104XF12-DE-02 | Mitsubishi | 10.4" | 1024×768 |
| AA084XE11-DA-02 | Mitsubishi | 8.4" | 1024×768 |
| AA084XE11-DA-01 | Mitsubishi | 8.4" | 1024×768 |
| AA084SD11-CA-01 | Mitsubishi | 8.4" | 800×600 |
| AA065VE11-DA-01 | Mitsubishi | 6.5" | 640×480 |
| AA084VC08 | Mitsubishi | 8.4" | 640×480 |
| AT070MJ01 | Mitsubishi | 7.0" | 800×480 |
| AA084SD11-DA-01 | Mitsubishi | 8.4" | 800×600 |
| AA104XF02--T1 | Mitsubishi | 10.4" | 1024×768 |
