Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 10.4 Inch |
|---|---|---|---|
| Frame Rate: | 60Hz | Touch Panel: | Without |
| Highlight: | sharp lcd screen,sharp lcd flat screen |
||

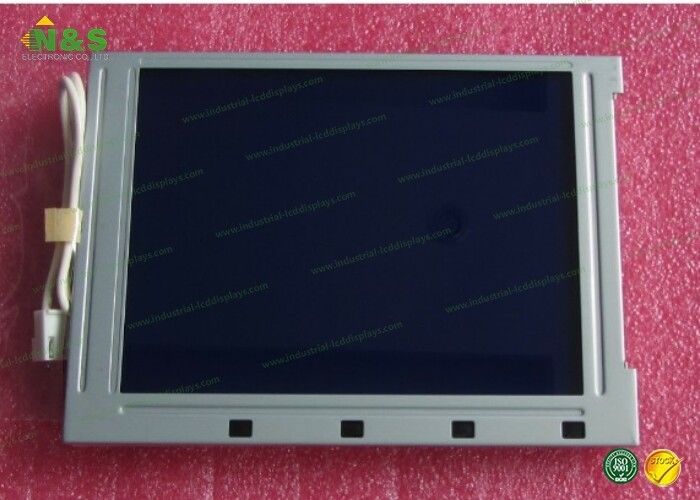

LQ104V1DG11 SHARP 10.4inch LCM 640×480 Resolution 211.2(H)×158.4(V) mm 211.2(H)×158.4(V) mm
LQ104V1DG11 Information
| Panel Model | LQ104V1DG11 |
|---|---|
| Panel Brand | SHARP |
| Descrition | a-Si TFT-LCD ,10.4 inch, 640×480 |
| Panel Type | a-Si TFT-LCD |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 211.2×158.4 mm |
| Outline | 265×195×11.5 mm |
| Surface | Antiglare (Haze 28%), Hard coating (3H), Antireflection |
| Contrast Ratio | 300:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 20/40 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/40/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 2 pcs CCFL Without Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit) , 31 pins |
| Input Voltage | 5.0V (Typ.)(VCC) |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM121VB1T02 | SHARP | 12.1" | 640×480 |
| LM121VB1T01 | SHARP | 12.1" | 640×480 |
| LM32015T | SHARP | 5.7" | 320×240 |
| LM8V302D | SHARP | 7.7" | 640×480 |
| LM104VC1T51 R | SHARP | 10.4" | 640×480 |
