Product Details:
|
| Series: | AT050TN33 | Keywords Desc.: | Innolux 5.0" TN LCM 480×272 300nits WLED TTL 40pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Resistive Touch LCD,Transmissive LCD |
| Application: | MP4 PMP,Pocket TV,Portable Navigation | Panel Type: | A-Si TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 5.0" |
| Resolution: | 480×272 | Aspect Ratio: | 16:9 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
| Active Area: | 110.88 (W) × 62.832 (H) Mm (A.A) | Viewing Area: | 113.90 (W) × 65.85 (H) Mm (V.A) |
| Outline Dimension: | 120.7 (W) × 75.8 (H) Mm | Max. Depth: | 4.45 Mm |
| Weight: | 83.0g (Typ.) | LC Family: | TN |
| Polarizer: | Transmissive | Brightness: | 300 (Typ.) |
| High Light: | industrial touch screen display,industrial lcd panel |
||

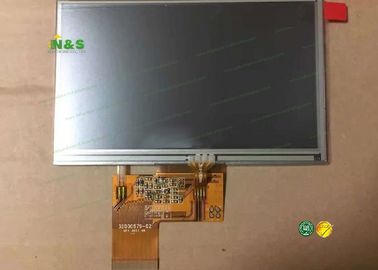

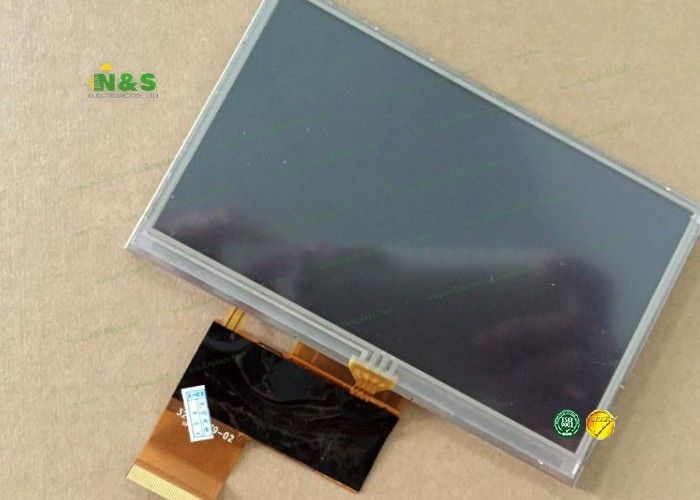

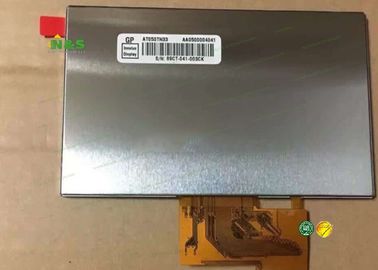

Innolux 5.0 inch TN LCM 480×272 300nits WLED TTL 40pins
Characteristic
| Panel Brand : | INNOLUX |
| Panel Model : | AT050TN33 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 5.0 inch |
| Resolution : | 480(RGB)×272 , WQVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 110.88×62.832 mm |
| Outline : | 120.7×75.8×4.45 mm |
| Surface : | Antiglare |
| Brightness : | 300 cd/m2 (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 50% |
| Response Time : | 10/15 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6S2P WLED |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.)(VCC) |
| Panel Size : | 5.0 inch |
| Dot Resolution : | 480(RGB)×272 (WQVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 109 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.077×0.231 mm (H×V) |
| Pixel Pitch : | 0.231×0.231 mm (H×V) |
| Weight : | 83.0g (Typ.) |
| Surface : | Antiglare |
| Active Area : | 110.88×62.832 mm (H×V) |
| Bezel Area : | 113.90×65.85 mm (H×V) |
| Outline Dimension : | 120.7×75.8 mm (H×V) |
| Outline Depth : | 4.25±0.2 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive, Film / Glass) |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
