Product Details:
|
| Series: | HSD050IDW1-A | Keywords Desc.: | HannStar 5.0" TN LCM 800×480 400nits WLED TTL 40pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Transmissive LCD |
| Application: | Automotive Display,Game Machine,MID UMPC,MP4 PMP,Pocket TV,Portable Na | Panel Type: | A-Si TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 5.0" |
| Resolution: | 800×480 | Aspect Ratio: | 15:9 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
| Active Area: | 108 (W) × 64.8 (H) Mm (A.A) | Viewing Area: | 110.6 (W) × 67.4 (H) Mm (V.A) |
| Outline Dimension: | 118.5 (W) × 77.55 (H) Mm | Max. Depth: | 3.7 Mm |
| Weight: | 66.0g (Typ.) | LC Family: | TN |
| Polarizer: | Transmissive | Brightness: | 400 (Typ.) |
| High Light: | industrial touch screen display,industrial lcd screen |
||
5.0 inch HannStar HSD050IDW1-A20 TN LCM 800×480 400nits WLED TTL 40pins
HSD050IDW1-A20 Main Parameters
| Panel Brand : | HannStar |
| Panel Model : | HSD050IDW1-A20 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 5.0 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 108×64.8 mm |
| Outline : | 118.5×77.55×3.7 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 400 cd/m2 (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 16.2M (6-bit + FRC) |
| Response Time : | 2/6 (Typ.)(Tr/Td) |
| Viewing Angle : | 75/75/60/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 7S2P WLED |
| Signal Interface : | TTL (1 ch, 8-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 5.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 188 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.045×0.135 mm (H×V) |
| Pixel Pitch : | 0.135×0.135 mm (H×V) |
| Weight : | 66.0g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 108×64.8 mm (H×V) |
| Bezel Area : | 110.6×67.4 mm (H×V) |
| Outline Dimension : | 118.5×77.55 mm (H×V) |
| Outline Depth : | 3.4±0.3 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| HSD043B8W2-C01 | HannStar | 4.3" | 480×800 |
| HSD070IDW3-A00-0299 | HannStar | 7.0" | 800×480 |
| HSD050F9W1-A00 | HannStar | 5.0" | 480×272 |
| HSD050FDW1-A00 | HannStar | 5.0" | 800×480 |
| HSD043F9W1-A00 | HannStar | 4.3" | 480×272 |
| HSD050B8W4-A00 | HannStar | 5.0" | 480×854 |
| HSD050B8W7-C00 | HannStar | 5.0" | 480×854 |
| HSD070FHW1-D00 | HannStar | 7.0" | 720×1280 |
| HSD050B8W2-C00 | HannStar | 5.0" | 480×854 |
| HSD047BHW1-D00 | HannStar | 4.7" | 720×1280 |
| HSD047BMW1-C00 | HannStar | 4.7" | 540×960 |

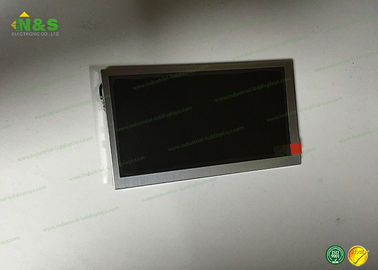

HSD050IDW1-A20 Picture
