Product Details:
|
| Series: | HV056WX2 | Keywords Desc.: | HYDIS 5.6" IPS Assembly 1280×800 220nits WLED LVDS 25pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Transmissive LCD,IPS LCD |
| Application: | MID UMPC | Panel Type: | A-Si TFT-LCD |
| Panel Composition: | Assembly | Panel Size: | 5.6" |
| Resolution: | 1280×800 | Aspect Ratio: | 16:10 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
| Active Area: | 120.96 (W) × 75.6 (H) Mm (A.A) | Outline Dimension: | 158 (W) × 90.3 (H) Mm |
| Weight: | 103g (Typ.) | LC Family: | IPS Family |
| Polarizer: | Transmissive | Brightness: | 220 (Typ.) |
| Contrast Ratio: | 500:1 (Typ.) | Viewing Angle: | 85/85/85/85 (Typ.)(CR10) (L/R/U/D) |
| High Light: | industrial touch screen display,industrial lcd panel |
||
HYDIS 5.6 inch IPS Assembly 1280×800 220nits WLED LVDS 25pins
Quick Details:
| Panel Brand : | HYDIS |
| Panel Model : | HV056WX2-100 |
| Panel Type : | a-Si TFT-LCD , Assembly |
| Panel Size : | 5.6 inch |
| Resolution : | 1280(RGB)×800 , WXGA |
| Active Area : | 120.96×75.6 mm |
| Outline : | 158×90.3 mm |
| Surface : | Glare (Haze 0%), Hard coating (2H) |
| Brightness : | 220 cd/m2 (Typ.) |
| Contrast Ratio : | 500:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 45% |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Signal Interface : | LVDS (1 ch, 6-bit) , 25 pins |
| Panel Size : | 5.6 inch |
| Dot Resolution : | 1280(RGB)×800 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 268 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0315×0.0945 mm (H×V) |
| Pixel Pitch : | 0.0945×0.0945 mm (H×V) |
| Weight : | 103g (Typ.) |
| Surface : | Glare (Haze 0%), Hard coating (2H) |
| Active Area : | 120.96×75.6 mm (H×V) |
| Outline Dimension : | 158×90.3 mm (H×V) |
| Outline Depth : | 6.25 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (Matrix Touch) |
| Panel Cover : | With Cover Lens |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HX7308BTJFA | Himax | 0.45" | 1024×768 |
| HX7027ATGFA | Himax | 0.44" | 640×480 |
| HX7019ATGFA | Himax | 0.38" | 640×360 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

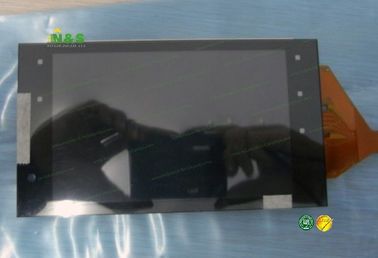

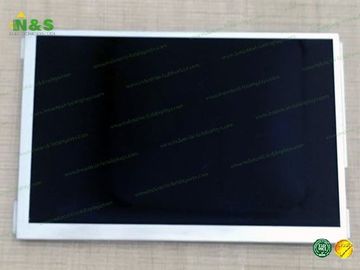

HV056WX2-100 Picture
