Product Details:
|
| Series: | PD035VL | Keywords Desc.: | E Ink 3.5" TN LCM 640×480 250nits WLED LVDS 20pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Transmissive LCD |
| Application: | Handheld Product,Portable Navigation,Projector | Panel Type: | A-Si TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 3.5" |
| Resolution: | 640×480 | Aspect Ratio: | 4:3 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
| Active Area: | 72 (W) × 52.56 (H) Mm (A.A) | Viewing Area: | 75.2 (W) × 55.55 (H) Mm (V.A) |
| Outline Dimension: | 85.2 (W) × 66.45 (H) Mm | Weight: | 78.05.0g |
| LC Family: | TN | Polarizer: | Transmissive |
| Brightness: | 250 (Typ.) | Contrast Ratio: | 400:1 (Typ.) |
| High Light: | industrial lcd screen,industrial lcd panel |
||
3.5 inch PVI PD035VL1 TN LCM 640×480 250nits WLED LVDS 20pins
PD035VL1 Quick Details:
| Panel Brand : | PVI |
| Panel Model : | PD035VL1 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 3.5 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 72×52.56 mm |
| Outline : | 85.2×66.45 mm |
| Surface : | Antiglare |
| Brightness : | 250 cd/m2 (Typ.) |
| Contrast Ratio : | 400:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 50/50/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 3S2P WLED |
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
| Panel Size : | 3.5 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 227 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0375×0.1095 mm (H×V) |
| Pixel Pitch : | 0.1125×0.1095 mm (H×V) |
| Weight : | 78.0±5.0g |
| Surface : | Antiglare |
| Active Area : | 72×52.56 mm (H×V) |
| Bezel Area : | 75.2×55.55 mm (H×V) |
| Outline Dimension : | 85.2×66.45 mm (H×V) |
| Outline Depth : | 8.45 (Typ.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| NL6448HL11-02 | NLT | 3.5" | 640×480 |
| NL12876AC18-03KD | NLT | 10.6" | 1280×768 |
| NL12876AC18-03BD | NLT | 10.6" | 1280×768 |
| NL10276BC13-01BD | NLT | 6.5" | 1024×768 |
| NL10276BC28-27E | NLT | 14.1" | 1024×768 |
| NL10276BC28-24C | NLT | 14.1" | 1024×768 |
| NL2432HC22-30B | NLT | 3.5" | 240×320 |

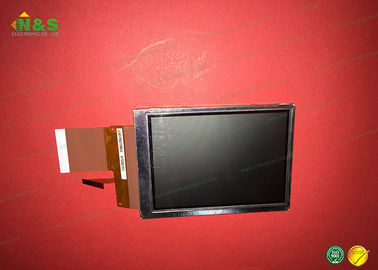

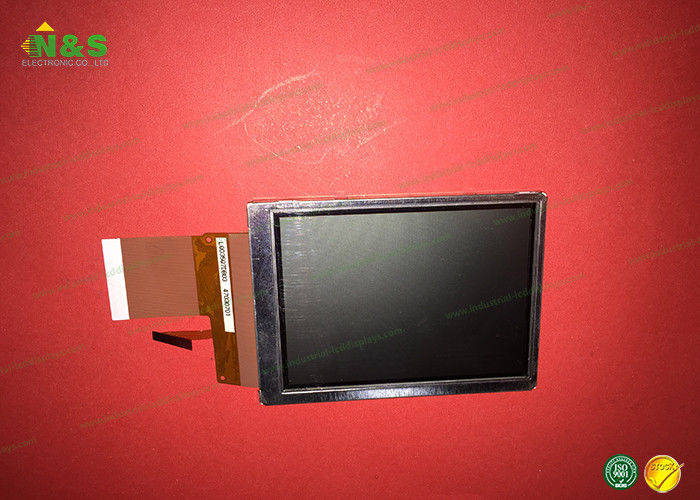

PD035VL1 Picture
