Product Details:
|
| Series: | LT070AC46 | Keywords Desc.: | TOSHIBA 7.0" LCM 800×480 300nits WLED LVDS 30pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Transmissive LCD |
| Application: | Industrial Application | Panel Type: | LTPS TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 7.0" |
| Resolution: | 800×480 | Aspect Ratio: | 15:9 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
| Active Area: | 152.4 (W) × 91.44 (H) Mm (A.A) | Viewing Area: | 156.4 (W) × 95.44 (H) Mm (V.A) |
| Outline Dimension: | 167 (W) × 106 (H) Mm | Max. Depth: | 8.1 Mm |
| Weight: | 200g (Typ.) | Polarizer: | Transmissive |
| Brightness: | 300 (Typ.) | Contrast Ratio: | 400:1 (Typ.) |
| High Light: | industrial lcd screen,industrial lcd panel |
||
7.0 inch TOSHIBA LT070AC46000 LCM 800×480 300nits WLED LVDS 30pins
LT070AC46000 Main Parameters
| Panel Brand : | Toshiba Matsushita |
| Panel Model : | LT070AC46000 |
| Panel Type : | LTPS TFT-LCD , LCM |
| Panel Size : | 7.0 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | Transmissive |
| Active Area : | 152.4×91.44 mm |
| Outline : | 167×106×8.1 mm |
| Brightness : | 300 cd/m2 (Typ.) |
| Contrast Ratio : | 400:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 45% |
| Response Time : | 30 (Typ.)(Tr+Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | WLED [8S6P: 8 Serial, 6 Parallel] Without Driver |
| Signal Interface : | LVDS (1 ch, 6-bit) , 30 pins |
| Input Voltage : | 3.3V (Typ.) |
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 133 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0635×0.1905 mm (H×V) |
| Pixel Pitch : | 0.1905×0.1905 mm (H×V) |
| Weight : | 200g (Typ.) |
| Active Area : | 152.4×91.44 mm (H×V) |
| Bezel Area : | 156.4×95.44 mm (H×V) |
| Outline Dimension : | 167×106 mm (H×V) |
| Outline Depth : | 7.6±0.5 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LTA070A251A | TOSHIBA | 7.0" | 480×234 |
| LTA040B470A | TOSHIBA | 4.0" | 480×234 |
| LT104AD18F00 | TOSHIBA | 10.4" | 800×600 |
| TFD60W12 | TOSHIBA | 6.0" | 320×234 |
| LTA149D680F | TOSHIBA | 14.9" | 1280×390 |
| LTA065B615A | TOSHIBA | 6.5" | 400×234 |
| LTA070B340A | TOSHIBA | 7.0" | 480×234 |

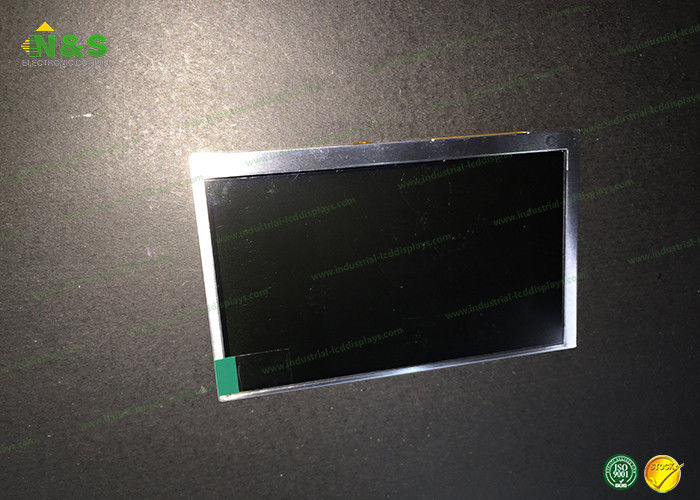

LT070AC46000 Picture
