Product Details:
|
| Series: | LTD104EA | Keywords Desc.: | TOSHIBA 10.4" TN LCM 1024×768 180nits CCFL LVDS 14pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Transmissive LCD |
| Application: | Laptop | Panel Type: | LTPS TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 10.4" |
| Resolution: | 1024×768 | Aspect Ratio: | 4:3 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
| Active Area: | 210.4 (W) × 157.8 (H) Mm (A.A) | Viewing Area: | 215.0 (W) × 162.5 (H) Mm (V.A) |
| Outline Dimension: | 237.1 (W) × 173.2 (H) Mm | Max. Depth: | 4.9 Mm |
| Weight: | 190g (Typ.) | LC Family: | TN |
| Polarizer: | Transmissive | Brightness: | 180 (Typ.) |
| High Light: | industrial lcd screen,industrial lcd panel |
||
LTD104EA5S 10.4 inch TOSHIBA TN LCM 1024×768 180nits CCFL LVDS 14pins
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
LTD104EA5S Main Parameters
| Panel Brand : | Toshiba Matsushita |
| Panel Model : | LTD104EA5S |
| Panel Type : | LTPS TFT-LCD , LCM |
| Panel Size : | 10.4 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 210.4×157.8 mm |
| Outline : | 237.1×173.2×4.9 mm |
| Brightness : | 180 cd/m2 (Typ.) |
| Contrast Ratio : | 100:1 (Min.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 50/50 (Max.)(Tr/Td) |
| Frequency : | 60Hz |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | LVDS (1 ch, 6-bit) , 14 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 10.4 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 123 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0685×0.2055 mm (H×V) |
| Pixel Pitch : | 0.2055×0.2055 mm (H×V) |
| Weight : | 190g (Typ.) |
| Active Area : | 210.4×157.8 mm (H×V) |
| Bezel Area : | 215.0×162.5 mm (H×V) |
| Outline Dimension : | 237.1×173.2 mm (H×V) |
| Outline Depth : | 4.9 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.0) on left, right slugs |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packing & Delivery for our LCD Screen Panel Replacements:
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LTD121LA7SG (Z) | TOSHIBA | 12.1" | 1024×768 |
| LTD154LZ1SG | TOSHIBA | 15.4" | 1920×1200 |
| LTD141LA1SG | TOSHIBA | 14.1" | 1024×768 |
| LTD121EA43G | TOSHIBA | 12.1" | 1024×768 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

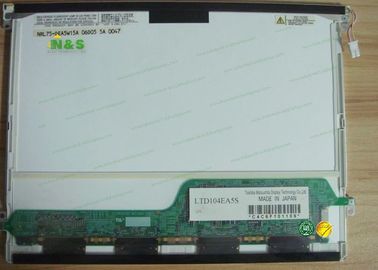

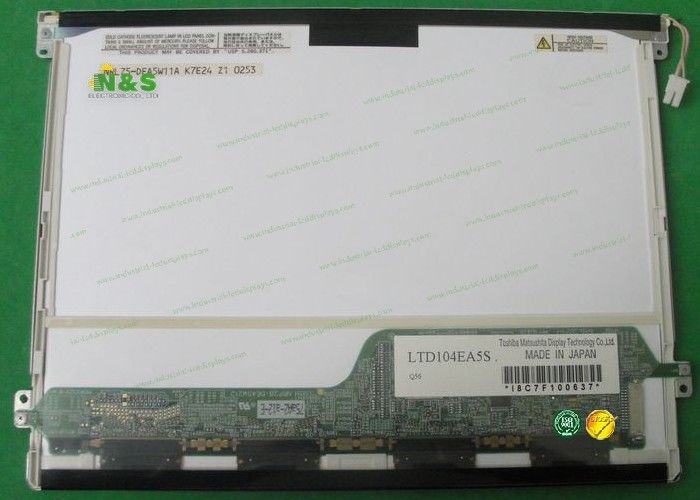

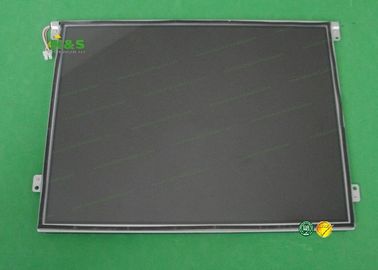

LTD104EA5S Picture
