Product Details:
|
| Series: | LTM08C351 | Keywords Desc.: | TOSHIBA 8.4" TN LCM 800×600 350nits CCFL TTL 30pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Transmissive LCD |
| Application: | Industrial Application | Panel Type: | LTPS TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 8.4" |
| Resolution: | 800×600 | Aspect Ratio: | 4:3 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
| Active Area: | 170.4 (W) × 127.8 (H) Mm (A.A) | Viewing Area: | 173.4 (W) × 130.8 (H) Mm (V.A) |
| Outline Dimension: | 199.5 (W) × 149.5 (H) Mm | Weight: | 385g (Typ.) |
| LC Family: | TN | Polarizer: | Transmissive |
| Brightness: | 350 (Typ.) | Contrast Ratio: | 300:1 (Max.) |
| High Light: | industrial touch screen display,industrial lcd panel |
||
LTM08C351S TOSHIBA 8.4 inch TN LCM 800×600 350nits CCFL TTL 30pins
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
LTM08C351S Quick Details:
| Panel Brand : | Toshiba Matsushita |
| Panel Model : | LTM08C351S |
| Panel Type : | LTPS TFT-LCD , LCM |
| Panel Size : | 8.4 inch |
| Resolution : | 800(RGB)×600 , SVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 170.4×127.8 mm |
| Outline : | 199.5×149.5 mm |
| Brightness : | 350 cd/m2 (Typ.) |
| Contrast Ratio : | 300:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 20/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 50/50/40/50 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 2 pcs CCFL |
| Signal Interface : | CMOS (1 ch, 6-bit) , 30 pins |
| Input Voltage : | 3.3V (Typ.)(VDD) |
| Panel Size : | 8.4 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 119 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.071×0.213 mm (H×V) |
| Pixel Pitch : | 0.213×0.213 mm (H×V) |
| Weight : | 385g (Typ.) |
| Active Area : | 170.4×127.8 mm (H×V) |
| Bezel Area : | 173.4×130.8 mm (H×V) |
| Outline Dimension : | 199.5×149.5 mm (H×V) |
| Outline Depth : | 12.0 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.4) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LTD121LA7SG (Z) | TOSHIBA | 12.1" | 1024×768 |
| LTD154LZ1SG | TOSHIBA | 15.4" | 1920×1200 |
| LTD141LA1SG | TOSHIBA | 14.1" | 1024×768 |
| LTD121EA43G | TOSHIBA | 12.1" | 1024×768 |
| LTH15C503-A | TOSHIBA | 15.0" | 1024×768 |
| LTM024D161 | TOSHIBA | 2.4" | 240×320 |
| LTM030DH60 | TOSHIBA | 3.0" | 240×427 |
| LTD154LZ1SG (Z) | TOSHIBA | 15.4" | 1920×1200 |
| LTD154EZ0HG | TOSHIBA | 15.4" | 1920×1200 |
| LTA140C06HF | TOSHIBA | 14.0" | 640×480 |
| LTM06C381 | TOSHIBA | 5.8" | 800×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

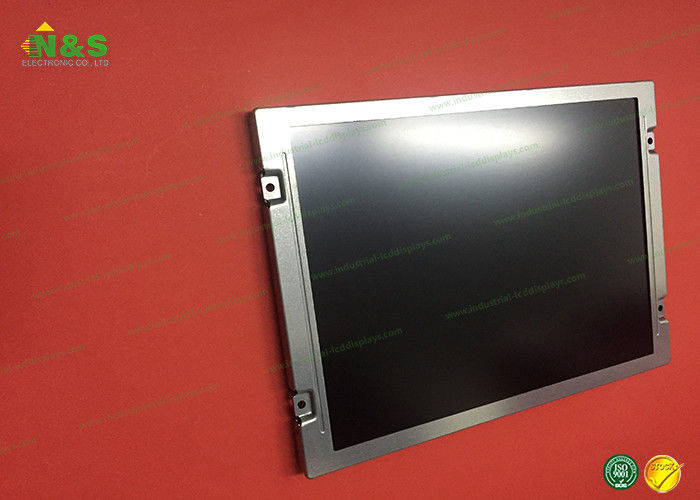

LTM08C351S Picture
