Product Details:
|
| Series: | TD025THED | Keywords Desc.: | TPO 2.5" TN LCM 320×240 300nits WLED TTL 39pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Transmissive LCD |
| Application: | Mobile Phone | Panel Type: | LTPS TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 2.5" |
| Resolution: | 320×240 | Aspect Ratio: | 4:3 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
| Active Area: | 49.92 (W) × 37.44 (H) Mm (A.A) | Outline Dimension: | 56.4 (W) × 49.12 (H) Mm |
| Max. Depth: | 2.5 Mm | Weight: | 12.91.0g |
| LC Family: | TN | Polarizer: | Transmissive |
| Brightness: | 300 (Typ.) | Contrast Ratio: | 350:1 (Typ.) |
| High Light: | industrial touch screen display,industrial lcd screen |
||
TD025THED2 TPO 2.5 inch TN LCM 320×240 300nits WLED TTL 39pins
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
TD025THED2 Quick Details:
| Panel Brand : | TPO |
| Panel Model : | TD025THED2 |
| Panel Type : | LTPS TFT-LCD , LCM |
| Panel Size : | 2.5 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 49.92×37.44 mm |
| Outline : | 56.4×49.12×2.5 mm |
| Brightness : | 300 cd/m2 (Typ.) |
| Contrast Ratio : | 350:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 70% |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 55/55/55/55 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) + SPI , 39 pins |
| Input Voltage : | 1.8/2.8V (Typ.)(VDDI/VDD) |
| Panel Size : | 2.5 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 162 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.052×0.156 mm (H×V) |
| Pixel Pitch : | 0.156×0.156 mm (H×V) |
| Weight : | 12.9±1.0g |
| Active Area : | 49.92×37.44 mm (H×V) |
| Outline Dimension : | 56.4×49.12 mm (H×V) |
| Outline Depth : | 2.3±0.2 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TF022TUYC8 | TPO | 2.2" | 240×320 |
| TF020TUVB2 | TPO | 2.0" | 176×220 |
| TE025THZB4 | TPO | 2.5" | 640×240 |
| AP030NUWC01 | TPO | 3.0" | 960×480(dot) |
| TF020TUYB1 | TPO | 2.0" | 176×220 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days

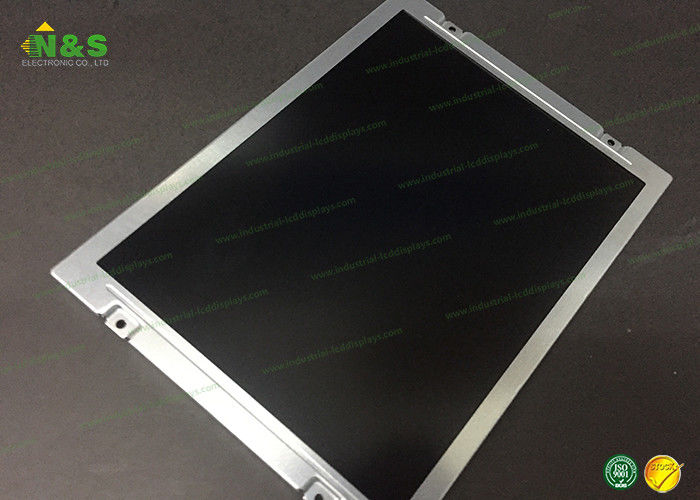

TD025THED2 Picture
