Product Details:
|
| Series: | TD035STED | Keywords Desc.: | TPO 3.5" TN LCM 240×320 115nits WLED TTL 60pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Resistive Touch LCD,Transflective LCD,Sunlight Readable |
| Application: | Handheld Product,PDA,Portable Navigation | Panel Type: | LTPS TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 3.5" |
| Resolution: | 240×320 | Aspect Ratio: | 3:4 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Portrait Type |
| Active Area: | 53.28 (W) × 71.04 (H) Mm (A.A) | Outline Dimension: | 64 (W) × 85 (H) Mm |
| Max. Depth: | 5.5 Mm | Weight: | 47.0g (Typ.) |
| LC Family: | TN | Polarizer: | Transflective |
| Brightness: | 115 (Typ.) | Contrast Ratio: | 100:1 (Typ.) |
| High Light: | industrial lcd screen,industrial lcd panel |
||
TPO 3.5 inch TD035STED7 TN LCM 240×320 115nits WLED TTL 60pins
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
5. Safe package
6. Get feekback from your side when items arrived,
7. 24 months warranty for items
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
TD035STED7 General Features
| Panel Brand : | TPO |
| Panel Model : | TD035STED7 |
| Panel Type : | LTPS TFT-LCD , LCM |
| Panel Size : | 3.5 inch |
| Resolution : | 240(RGB)×320 , QVGA |
| Display Mode : | TN, Normally White, Transflective |
| Active Area : | 53.28×71.04 mm |
| Outline : | 64×85×5.5 mm |
| Brightness : | 115 cd/m2 (Typ.) |
| Contrast Ratio : | 100:1 (Typ.)(Transmissive) 15:1 (Typ.)(Reflective) |
| Display Colors : | 262K (6-bit) , CIE1931 36% |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 60/60/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6S1P WLED |
| Panel Size : | 3.5 inch |
| Dot Resolution : | 240(RGB)×320 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 114 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.074×0.222 mm (H×V) |
| Pixel Pitch : | 0.222×0.222 mm (H×V) |
| Weight : | 47.0g (Typ.) |
| Active Area : | 53.28×71.04 mm (H×V) |
| Outline Dimension : | 64×85 mm (H×V) |
| Outline Depth : | 4.1/5.5 (Typ./Max.) mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Embeded (4-wire Resistive) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LTD121LA7SG (Z) | TOSHIBA | 12.1" | 1024×768 |
| LTD154LZ1SG | TOSHIBA | 15.4" | 1920×1200 |
| LTD141LA1SG | TOSHIBA | 14.1" | 1024×768 |
| LTD121EA43G | TOSHIBA | 12.1" | 1024×768 |
| LTH15C503-A | TOSHIBA | 15.0" | 1024×768 |
| LTM024D161 | TOSHIBA | 2.4" | 240×320 |
| LTM030DH60 | TOSHIBA | 3.0" | 240×427 |
| LTD154LZ1SG (Z) | TOSHIBA | 15.4" | 1920×1200 |
| LTD154EZ0HG | TOSHIBA | 15.4" | 1920×1200 |
| LTA140C06HF | TOSHIBA | 14.0" | 640×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

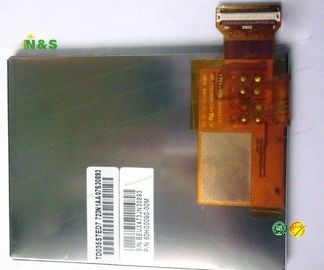

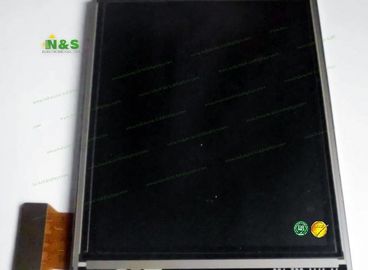

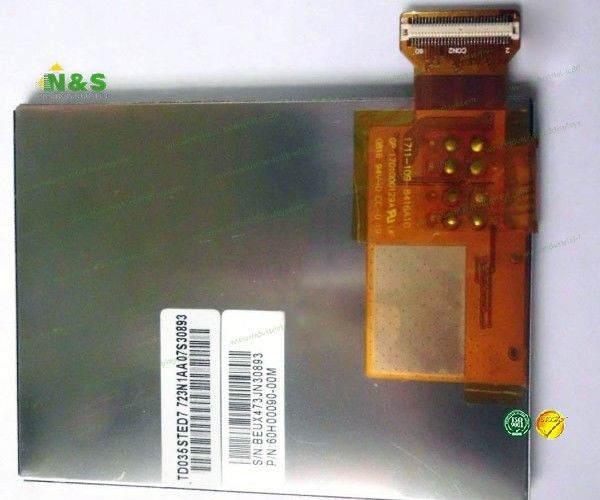

TD035STED7 Picture
