Product Details:
|
| Series: | LTM200KT | Keywords Desc.: | Samsung 20.0" TN LCM 1600×900 250nits WLED LVDS 30pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Transmissive LCD |
| Application: | Desktop Monitor | Panel Type: | A-Si TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 20.0" |
| Resolution: | 1600×900 | Aspect Ratio: | 16:9 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
| Active Area: | 442.8 (W) × 249.075 (H) Mm (A.A) | Viewing Area: | 446.8 (W) × 253.2 (H) Mm (V.A) |
| Outline Dimension: | 462.8 (W) × 272 (H) Mm | Max. Depth: | 10.3 Mm |
| Weight: | 1.70Kgs (Max.) | LC Family: | TN |
| Polarizer: | Transmissive | Brightness: | 250 (Typ.) |
| High Light: | industrial touch screen display,industrial lcd panel |
||
Samsung LTM200KT10 20.0 inch TN LCM 1600×900 250nits WLED LVDS 30pins
LTM200KT10 General Features
| Panel Brand : | SAMSUNG |
| Panel Model : | LTM200KT10 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 20.0 inch |
| Resolution : | 1600(RGB)×900 , HD+ |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 442.8×249.075 mm |
| Outline : | 462.8×272×10.3 mm |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness : | 250 cd/m2 (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 72% |
| Response Time : | 5 (Typ.)(Tr+Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 8S3P WLED |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Packaging & Delivery
Packaging: Safety Package For all of our LCD Screen Panel Replacements.
Details: 1. Antistatic bag
2. Layers of cartons
3. Foam Box
4. Carton Box.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AMS549HQ02 | Samsung | 5.5" | 720×1280 |
| AMS520BQ12-0 | Samsung | 5.2" | 1080×1920 |
| AMS497DX12-0 | Samsung | 5.0" | 720×1280 |
| AMS163AN01 | Samsung | 1.63" | 320×320 |
| AMS510CV02 | Samsung | 5.1" | 1080×1920 |
| AMS510CV01 | Samsung | 5.1" | 1080×1920 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 250 cd/m2 (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 5 (Typ.)(Tr+Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.33 (Max.)(9 points) |
| Sunlight Readable : | N |

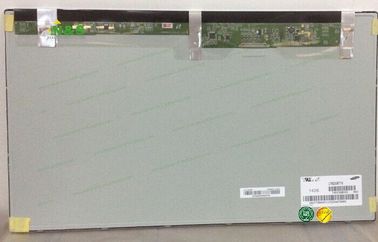

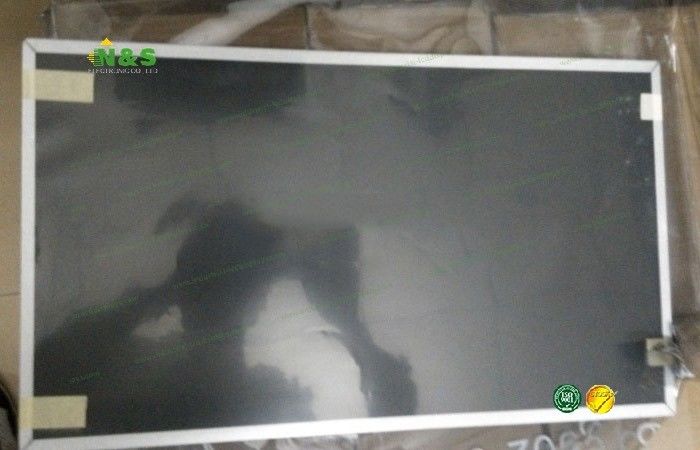

LTM200KT10 Picture
