Product Details:
|
| Series: | TX16D11 | Keywords Desc.: | KOE 7.0" TN LCM 800×480 400nits CCFL TTL 40pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Transmissive LCD |
| Application: | Industrial Application | Panel Type: | A-Si TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 7.0" |
| Resolution: | 800×480 | Aspect Ratio: | 15:9 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
| Active Area: | 152.4 (W) × 91.44 (H) Mm (A.A) | Viewing Area: | 156.4 (W) × 95.44 (H) Mm (V.A) |
| Outline Dimension: | 165 (W) × 106 (H) Mm | Max. Depth: | 10.5 Mm |
| Weight: | 170g (Typ.) | LC Family: | TN |
| Polarizer: | Transmissive | Brightness: | 400 (Typ.) |
| High Light: | industrial touch screen display,industrial lcd screen |
||
TX18D11VM1CAA KOE 7.0 inch TN LCM 800×480 400nits CCFL TTL 40pins
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.
TX18D11VM1CAA General Features
| Panel Brand : | HITACHI |
| Panel Model : | TX18D11VM1CAA |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 7.0 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 152.4×91.44 mm |
| Outline : | 165×106×10.5 mm |
| Brightness : | 400 cd/m2 (Typ.) |
| Contrast Ratio : | 200:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 30/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/45/60 (Typ.)(CR≥5) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | CMOS (1 ch, 6-bit) , 40 pins |
| Input Voltage : | 3.3V (Typ.)(VDD) |
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 133 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0635×0.1905 mm (H×V) |
| Pixel Pitch : | 0.1905×0.1905 mm (H×V) |
| Weight : | 170g (Typ.) |
| Active Area : | 152.4×91.44 mm (H×V) |
| Bezel Area : | 156.4×95.44 mm (H×V) |
| Outline Dimension : | 165×106 mm (H×V) |
| Outline Depth : | 10.5 (Max.) mm |
| Holes & Brackets : | Rear mounting holes (4 pcs) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| SP14Q003-A | KOE | 5.7" | 320×240 |
| SP14Q006 | KOE | 5.7" | 320×240 |
| SP14N01L6VLCZ | KOE | 5.1" | 240×128 |
| SP14N01L6VLCA | KOE | 5.1" | 240×128 |
| SP14N01L6ALCZ | KOE | 5.1" | 240×128 |
| SP14N01L6ALCA | KOE | 5.1" | 240×128 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements

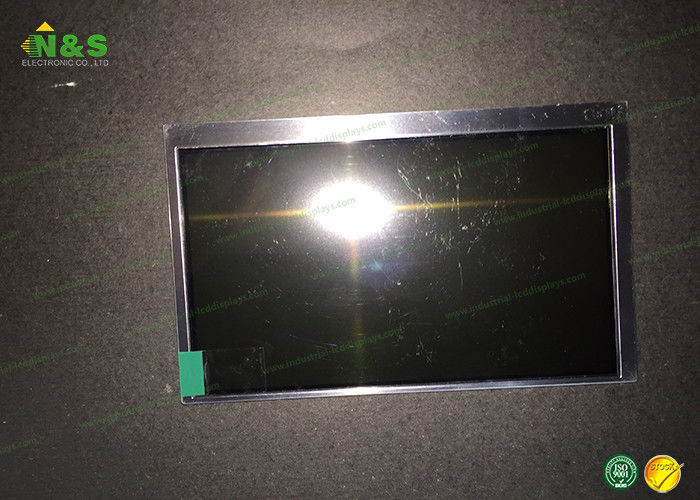

TX18D11VM1CAA Picture
