Product Details:
|
| Series: | SX14Q001 | Keywords Desc.: | KOE 5.7" 320×240 CSTN-LCD Normally Black Transmissive CCFL Parallel Da |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | CSTN-LCD Graphic Module |
| Application: | Industrial Application | Panel Type: | CSTN-LCD |
| Panel Composition: | LCM | Panel Size: | 5.7" |
| Resolution: | 320×240 | Form Factor: | Flat Rectangle Display |
| Active Area: | 115.18 (W) × 86.38 (H) Mm (A.A) | Viewing Area: | 122.0 (W) × 92.0 (H) Mm (V.A) |
| Outline Dimension: | 167 (W) × 109 (H) Mm | Max. Depth: | 11.6 Mm |
| Polarizer: | Transmissive | Color Mode: | Normally Black |
| Viewing Direction: | 6 O'clock | Colors Amount: | Color |
| Driving Duty: | 1/240 | Backlight Type: | CCFL |
| High Light: | industrial touch screen display,industrial lcd screen |
||
5.7 inch SX14Q001-ZZA 320×240 CSTN-LCD Normally Black Transmissive CCFL Parallel Data 16pins
SX14Q001-ZZA Main Parameters
| Panel Brand : | HITACHI |
| Panel Model : | SX14Q001-ZZA |
| Panel Type : | CSTN-LCD , LCM |
| Panel Size : | 5.7 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | STN, Normally Black, Transmissive |
| Active Area : | 115.2×86.4 mm |
| Outline : | 167×109×11.6 mm |
| Brightness : | 110 cd/m2 (Typ.) |
| Contrast Ratio : | 40:1 (Typ.) |
| Display Colors : | Color |
| Response Time : | 250/200 (Typ.)(Tr/Td) |
| Viewing Angle : | 40 (Typ.)(CR≥2, Φ2-Φ1) (L/R/U/D) |
| Frequency : | 70Hz |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | Parallel Data (8-bit) , 16 pins |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LMG9980ZWCC | KOE | 12.1" | 800×600 |
| SX19V004-ZZA | KOE | 7.5" | 800×600 |
| SX19V010-ZZA | KOE | 7.5" | 640×480 |
| SX19V010 | KOE | 7.5" | 640×480 |
| SX31S009 | KOE | 12.1" | 800×600 |
| SX31S008 | KOE | 12.1" | 800×600 |
| SX31S007 | KOE | 12.1" | 800×600 |
| SX31S004 | KOE | 12.1" | 800×600 |
| SX31S003 | KOE | 12.1" | 800×600 |
| SX31S002 | KOE | 12.1" | 800×600 |
| LNG9980ZWCC | KOE | 12.1" | 800×600 |
| Panel Size : | 5.7 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 70 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.120×0.360 mm (H×V) |
| Pixel Pitch : | 0.360×0.360 mm (H×V) |
| Active Area : | 115.2×86.4 mm (H×V) |
| Bezel Area : | 122.0×92.0 mm (H×V) |
| Outline Dimension : | 167×109 mm (H×V) |
| Outline Depth : | 11.6 (Max.) mm |
| Holes & Brackets : | Face mounting holes (4-Φ3.5) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive) |

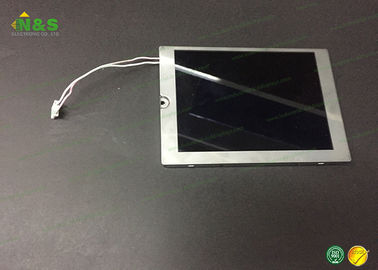

SX14Q001-ZZA Picture
