Product Details:
|
| Series: | LQ070Y3LG | Keywords Desc.: | SHARP 7.0" TN LCM 800×480 350nits WLED LVDS 30pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Transmissive LCD |
| Application: | Industrial Application | Panel Type: | A-Si TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 7.0" |
| Resolution: | 800×480 | Aspect Ratio: | 15:9 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
| Active Area: | 152.4 (W) × 91.44 (H) Mm (A.A) | Viewing Area: | 156.8 (W) × 94.94 (H) Mm (V.A) |
| Outline Dimension: | 163.2 (W) × 104 (H) Mm | Max. Depth: | 6.25 Mm |
| Weight: | 135/140g (Typ./Max.) | LC Family: | TN |
| Polarizer: | Transmissive | Brightness: | 350 (Typ.) |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
LQ070Y3LG4A 7.0 inch SHARP TN LCM 800×480 350nits WLED LVDS 30pins
LQ070Y3LG4A Main Parameters
| Panel Brand : | SHARP |
| Panel Model : | LQ070Y3LG4A |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 7.0 inch |
| Resolution : | 800×480(RGB) , WVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 152.4×91.44 mm |
| Outline : | 163.2×104×6.25 mm |
| Surface : | Antiglare, Hard coating (2H) |
| Brightness : | 350 cd/m2 (Typ.) |
| Contrast Ratio : | 400:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 35 (Typ.)(Tr+Td) |
| Viewing Angle : | 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 8S3P WLED |
| Signal Interface : | LVDS (1 ch, 8-bit) , 30 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800×480(RGB) (WVGA) |
| Pixel Configuration : | RGB Horizontal Stripe |
| Pixel Density : | 133 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1905×0.0635 mm (H×V) |
| Pixel Pitch : | 0.1905×0.1905 mm (H×V) |
| Weight : | 135/140g (Typ./Max.) |
| Surface : | Antiglare, Hard coating (2H) |
| Active Area : | 152.4×91.44 mm (H×V) |
| Bezel Area : | 156.8×94.94 mm (H×V) |
| Outline Dimension : | 163.2×104 mm (H×V) |
| Outline Depth : | 3.9/6.25 (Typ./Max.) mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

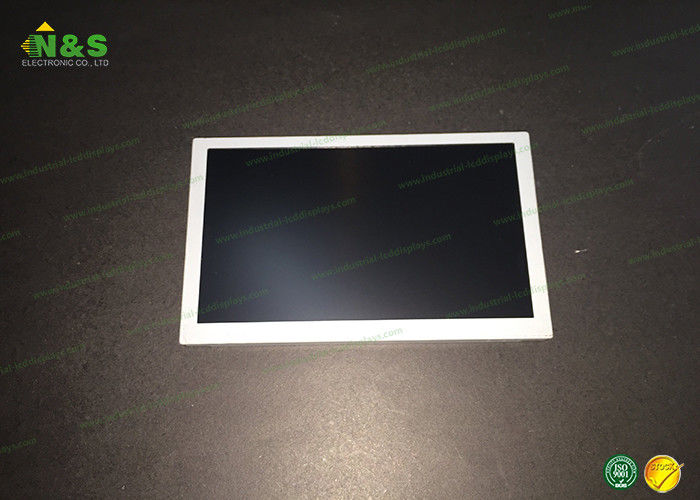

LQ070Y3LG4A Picture
