Product Details:
|
| Series: | LQ057Q3DG | Keywords Desc.: | SHARP 5.7" TN LCM 320×240 400nits WLED TTL 33pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Wide Temperature LCD,Transmissive LCD |
| Application: | Industrial Application | Panel Type: | A-Si TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 5.7" |
| Resolution: | 320×240 | Aspect Ratio: | 4:3 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
| Active Area: | 115.2 (W) × 86.4 (H) Mm (A.A) | Viewing Area: | 121.0 (W) × 92.2 (H) Mm (V.A) |
| Outline Dimension: | 144 (W) × 103.8 (H) Mm | Max. Depth: | 12.8 Mm |
| Weight: | 210g (Max.) | LC Family: | TN |
| Polarizer: | Transmissive | Brightness: | 400 (Typ.) |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
LQ057Q3DG02 SHARP 5.7 inch TN LCM 320×240 400nits WLED TTL 33pins
LQ057Q3DG02 Main Parameters
| Panel Brand : | SHARP |
| Panel Model : | LQ057Q3DG02 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 5.7 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 115.2×86.4 mm |
| Outline : | 144×103.8×12.8 mm |
| Brightness : | 400 cd/m2 (Typ.) |
| Contrast Ratio : | 550:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 30/10 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/65 (Typ.)(CR≥5) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 5S4P WLED |
| Signal Interface : | CMOS (1 ch, 6-bit) , 33 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 5.7 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 70 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.120×0.360 mm (H×V) |
| Pixel Pitch : | 0.360×0.360 mm (H×V) |
| Weight : | 210g (Max.) |
| Active Area : | 115.2×86.4 mm (H×V) |
| Bezel Area : | 121.0×92.2 mm (H×V) |
| Outline Dimension : | 144×103.8 mm (H×V) |
| Outline Depth : | 12.3±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M2); Rear mounting holes (4 pcs) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM016LC1S07 | SHARP | 1.9" | 96×128 |
| LS050K3SX06A | SHARP | 5.0" | 720×1280 |
| LK460D3HA10 | SHARP | 46" | 1920×1080 |
| LK315T3HB874 | SHARP | 31.5" | 1366×768 |
| LK315T3HB873 | SHARP | 31.5" | 1366×768 |
| LQ0DZC0156 | SHARP | 40" | 1920×1080 |
| LX080M1BB01 | SHARP | 8.0" | 1920×1200 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

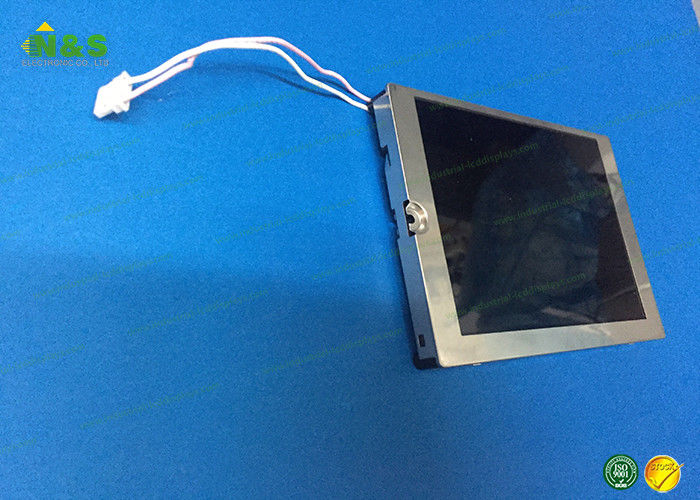

LQ057Q3DG02 Picture
