Product Details:
|
| Series: | LQ057Q3DC | Keywords Desc.: | SHARP 5.7" TN LCM 320×240 350nits CCFL TTL 33pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Transmissive LCD |
| Application: | Industrial Application | Panel Type: | A-Si TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 5.7" |
| Resolution: | 320×240 | Aspect Ratio: | 4:3 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
| Active Area: | 115.2 (W) × 86.4 (H) Mm (A.A) | Viewing Area: | 121.0 (W) × 92.2 (H) Mm (V.A) |
| Outline Dimension: | 144 (W) × 104.6 (H) Mm | Max. Depth: | 13.5 Mm |
| LC Family: | TN | Polarizer: | Transmissive |
| Brightness: | 350 (Typ.) | Contrast Ratio: | 60:1 (Typ.) |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
LQ057Q3DC02 SHARP 5.7 inch TN LCM 320×240 350nits CCFL TTL 33pins
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
Year warranty
Day shipping
Return
LQ057Q3DC02 Quick Details:
| Panel Brand : | SHARP |
| Panel Model : | LQ057Q3DC02 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 5.7 inch |
| Resolution : | 320(RGB)×240 , QVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 115.2×86.4 mm |
| Outline : | 144×104.6×13.5 mm |
| Surface : | Hard coating (3H), Antireflection |
| Brightness : | 350 cd/m2 (Typ.) |
| Contrast Ratio : | 60:1 (Min.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/65/40 (Typ.)(CR≥5) (L/R/U/D) |
| Lamp Type : | 1 pcs CCFL out Driver |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 33 pins |
| Input Voltage : | 3.3V (Typ.)(VCC) |
| Panel Size : | 5.7 inch |
| Dot Resolution : | 320(RGB)×240 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 70 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.120×0.360 mm (H×V) |
| Pixel Pitch : | 0.360×0.360 mm (H×V) |
| Surface : | Hard coating (3H), Antireflection |
| Active Area : | 115.2×86.4 mm (H×V) |
| Bezel Area : | 121.0×92.2 mm (H×V) |
| Outline Dimension : | 144×104.6 mm (H×V) |
| Outline Depth : | 12.4/13.5 (Typ./Max.) mm |
| Holes & Brackets : | Rear mounting holes (4-Ф2.6) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

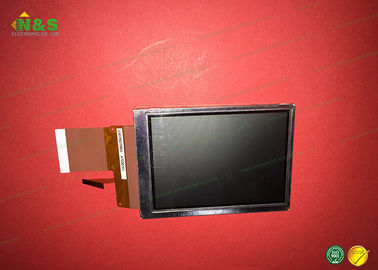

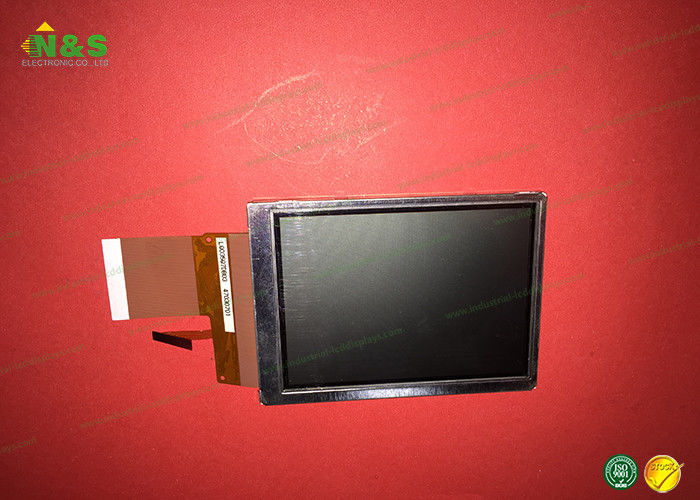

LQ057Q3DC02 Picture
