Product Details:
|
| Series: | LQ035Q7DH | Keywords Desc.: | SHARP 3.5" TN LCM 240×320 110nits WLED TTL 61pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Resistive Touch LCD,Transflective LCD,Sunlight Readable |
| Application: | Handheld Product,PDA | Panel Type: | A-Si TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 3.5" |
| Resolution: | 240×320 | Aspect Ratio: | 3:4 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Portrait Type |
| Active Area: | 53.64 (W) × 71.52 (H) Mm (A.A) | Viewing Area: | 57.4 (W) × 75.2 (H) Mm (V.A) |
| Outline Dimension: | 65 (W) × 86.2 (H) Mm | Max. Depth: | 4.2 Mm |
| Weight: | 45.0g (Typ.) | LC Family: | TN |
| Polarizer: | Transflective | Brightness: | 110 (Typ.) |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
SHARP LQ035Q7DH05 3.5 inch TN LCM 240×320 110nits WLED TTL 61pins
LQ035Q7DH05 Detailed Product Description
| Panel Brand : | SHARP |
| Panel Model : | LQ035Q7DH05 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 3.5 inch |
| Resolution : | 240(RGB)×320 , QVGA |
| Display Mode : | TN, Normally White, Transflective |
| Active Area : | 53.64×71.52 mm |
| Outline : | 65×86.2×4.2 mm |
| Surface : | Hard coating (3H) |
| Brightness : | 110 cd/m2 (Typ.) |
| Contrast Ratio : | 95:1 (Typ.)(Transmissive) 3:1 (Typ.)(Reflective) |
| Display Colors : | 262K (6-bit) , CIE1931 29% |
| Response Time : | 15/30 (Typ.)(Tr/Td) |
| Viewing Angle : | 50/50/50/50 (Typ.)(CR≥2) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 61 pins |
| Input Voltage : | 5.0/3.3/15.0/-10.0V (Typ.)(VSHA/VSHD/VDD/VEE) |
| Panel Size : | 3.5 inch |
| Dot Resolution : | 240(RGB)×320 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 113 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0745×0.2235 mm (H×V) |
| Pixel Pitch : | 0.2235×0.2235 mm (H×V) |
| Weight : | 45.0g (Typ.) |
| Surface : | Hard coating (3H) |
| Active Area : | 53.64×71.52 mm (H×V) |
| Bezel Area : | 57.4×75.2 mm (H×V) |
| Outline Dimension : | 65×86.2 mm (H×V) |
| Outline Depth : | 4.0±0.2 mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Embeded (4-wire Resistive) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.

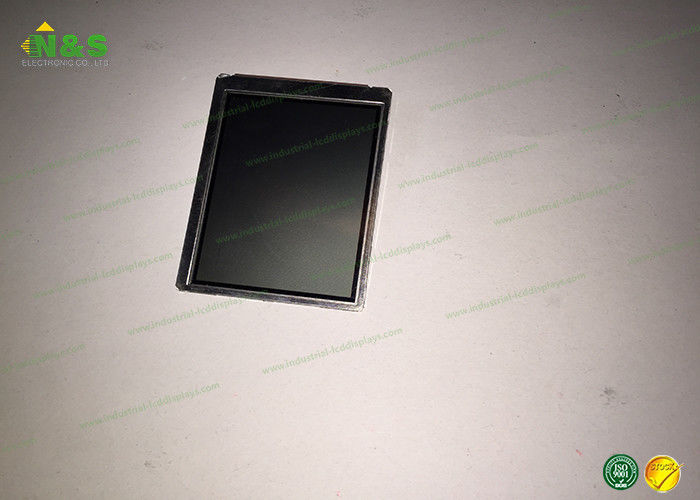

LQ035Q7DH05 Picture
