Product Details:
|
| Series: | LQ104S1DG | Keywords Desc.: | SHARP 10.4" TN LCM 800×600 350nits CCFL TTL 41pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Transmissive LCD |
| Application: | Industrial Application | Panel Type: | A-Si TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 10.4" |
| Resolution: | 800×600 | Aspect Ratio: | 4:3 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
| Active Area: | 211.2 (W) × 158.4 (H) Mm (A.A) | Viewing Area: | 214.6 (W) × 162.4 (H) Mm (V.A) |
| Outline Dimension: | 246.5 (W) × 179.4 (H) Mm | Weight: | 620g (Max.) |
| LC Family: | TN | Polarizer: | Transmissive |
| Brightness: | 350 (Typ.) | Contrast Ratio: | 300:1 (Max.) |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
LQ104S1DG21 10.4 inch SHARP TN LCM 800×600 350nits CCFL TTL 41pins
LQ104S1DG21 Detailed Product Description
| Panel Brand : | SHARP |
| Panel Model : | LQ104S1DG21 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.4 inch |
| Resolution : | 800(RGB)×600 , SVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 211.2×158.4 mm |
| Outline : | 246.5×179.4 mm |
| Surface : | Antiglare, Hard coating (3H), Antireflection |
| Brightness : | 350 cd/m2 (Typ.) |
| Contrast Ratio : | 300:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/40/70 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 2 pcs CCFL |
| Signal Interface : | CMOS (1 ch, 6-bit) , 41 pins |
| Input Voltage : | 3.3/5.0V (Typ.)(VCC) |
| Panel Size : | 10.4 inch |
| Dot Resolution : | 800(RGB)×600 (SVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 96 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.088×0.264 mm (H×V) |
| Pixel Pitch : | 0.264×0.264 mm (H×V) |
| Weight : | 620g (Max.) |
| Surface : | Antiglare, Hard coating (3H), Antireflection |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 214.6×162.4 mm (H×V) |
| Outline Dimension : | 246.5×179.4 mm (H×V) |
| Outline Depth : | 15.5 (Max.) mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.4, 2-3.4×4.4) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |

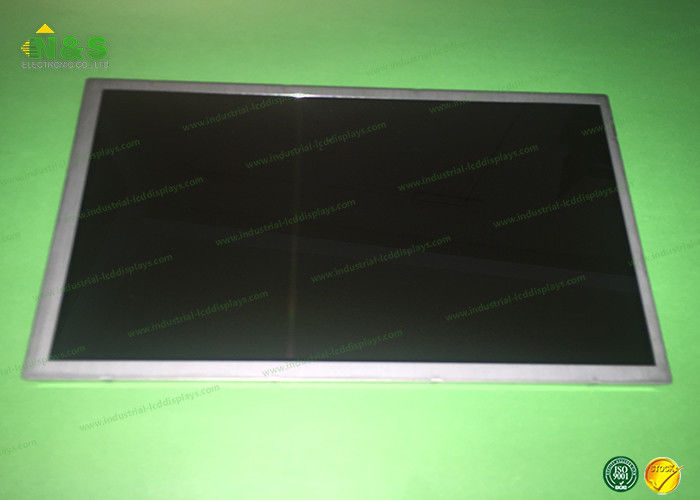

LQ104S1DG21 Picture
