Product Details:
|
| Series: | LQ10PX2 | Keywords Desc.: | SHARP 10.0" TN LCM 1024×768 0nits No B/L TTL 80pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Transmissive LCD |
| Application: | Projector | Panel Type: | A-Si TFT-LCD |
| Panel Composition: | LCM | Panel Size: | 10.0" |
| Resolution: | 1024×768 | Aspect Ratio: | 4:3 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Landscape Type |
| Active Area: | 202.752 (W) × 152.064 (H) Mm (A.A) | Viewing Area: | 205.75 (W) × 155.06 (H) Mm (V.A) |
| Outline Dimension: | 265 (W) × 195 (H) Mm | Weight: | 43020g |
| LC Family: | TN | Polarizer: | Transmissive |
| Brightness: | 0 | Contrast Ratio: | 100:1 (Typ.) |
| High Light: | industrial touch screen display,industrial lcd screen |
||
LQ10PX21 SHARP 10.0 inch TN LCM 1024×768 0nits No B/L TTL 80pins
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.
LQ10PX21 Main Parameters
| Panel Brand : | SHARP |
| Panel Model : | LQ10PX21 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.0 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 202.752×152.064 mm |
| Outline : | 265×195 mm |
| Surface : | Clear, Hard coating (2H) |
| Brightness : | 0 cd/m2 |
| Contrast Ratio : | 100:1 (Min.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 35/35/30/10 (Min.)(CR≥10) (L/R/U/D) |
| Lamp Type : | No B/L |
| Signal Interface : | Parallel RGB (2 ch, 6-bit) , 80 pins |
| Input Voltage : | 5.0V (Typ.)(VCC) |
| Panel Size : | 10.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 128 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.066×0.198 mm (H×V) |
| Pixel Pitch : | 0.198×0.198 mm (H×V) |
| Weight : | 430±20g |
| Surface : | Clear, Hard coating (2H) |
| Active Area : | 202.752×152.064 mm (H×V) |
| Bezel Area : | 205.75×155.06 mm (H×V) |
| Outline Dimension : | 265×195 mm (H×V) |
| Outline Depth : | 8.0 (Typ.) mm |
| Holes & Brackets : | Face mounting holes (4 pcs) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |
| LK235D3HA0S | SHARP | 23.6" | 1920×1080 |

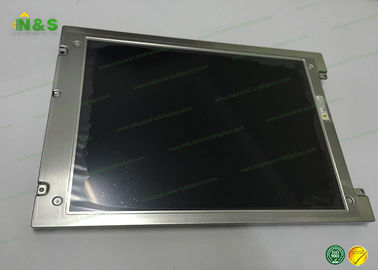

LQ10PX21 Picture
