Product Details:
|
| Series: | LS037V7DW | Keywords Desc.: | SHARP 3.7" LCM 480×640 165nits WLED TTL 51pins |
|---|---|---|---|
| Product Class: | Graphic LCD Display | Product Tags: | Color TFT-LCD,Resistive Touch LCD,Transflective LCD,Sunlight Readable |
| Application: | Handheld Product | Panel Type: | CG-Silicon |
| Panel Composition: | LCM | Panel Size: | 3.7" |
| Resolution: | 480×640 | Aspect Ratio: | 3:4 (W:H) |
| Form Factor: | Flat Rectangle Display | Orientation: | Portrait Type |
| Active Area: | 56.16 (W) × 74.88 (H) Mm (A.A) | Viewing Area: | 59.8 (W) × 78.5 (H) Mm (V.A) |
| Outline Dimension: | 65 (W) × 89.2 (H) Mm | Max. Depth: | 6.4 Mm |
| Weight: | 48.0g (Typ.) | Polarizer: | Transflective |
| Brightness: | 165 (Typ.) | Contrast Ratio: | 200:1 (Typ.) |
| High Light: | sharp lcd display panels,sharp lcd flat screen |
||
SHARP LS037V7DW01 3.7 inch LCM 480×640 165nits WLED TTL 51pins
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
LS037V7DW01 Quick Details:
| Panel Brand : | SHARP |
| Panel Model : | LS037V7DW01 |
| Panel Type : | CG-Silicon , LCM |
| Panel Size : | 3.7 inch |
| Resolution : | 480(RGB)×640 , VGA |
| Display Mode : | Normally Black, Transflective |
| Active Area : | 56.16×74.88 mm |
| Outline : | 65×89.2×6.4 mm |
| Surface : | Hard coating (3H) |
| Brightness : | 165 cd/m2 (Typ.) |
| Contrast Ratio : | 200:1 (Typ.)(Transmissive) 2:1 (Typ.)(Reflective) |
| Display Colors : | 262K (6-bit) , CIE1931 35% |
| Response Time : | 15/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥5) (L/R/U/D) |
| Lamp Type : | WLED |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 51 pins |
| Input Voltage : | 3.3V (Typ.)(VSHD) |
| Panel Size : | 3.7 inch |
| Dot Resolution : | 480(RGB)×640 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 217 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.039×0.117 mm (H×V) |
| Pixel Pitch : | 0.117×0.117 mm (H×V) |
| Weight : | 48.0g (Typ.) |
| Surface : | Hard coating (3H) |
| Active Area : | 56.16×74.88 mm (H×V) |
| Bezel Area : | 59.8×78.5 mm (H×V) |
| Outline Dimension : | 65×89.2 mm (H×V) |
| Outline Depth : | 4.4/6.4 (Typ./Max.) mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Embeded (4-wire Resistive) |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |

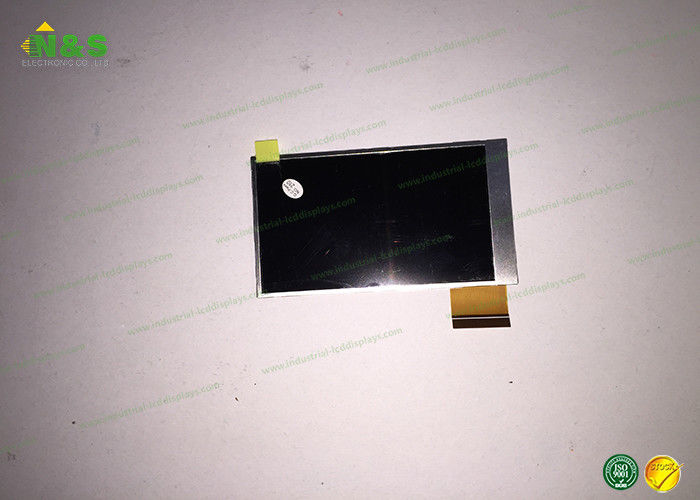

LS037V7DW01 Picture
