Product Details:
|
| Display Mode: | TN, Normally White, Transmissive | Active Area: | 115.2×86.4 Mm |
|---|---|---|---|
| Outline: | 144×104.6×13.3 Mm | Surface: | Antiglare |
| Brightness: | 500 Cd/m² (Typ.) | Contrast Ratio: | 600:1 (Typ.) |
| High Light: | industrial touch screen display,industrial lcd screen |
||
LCD Displays PD057VT2 PVI 5.7 inch with 115.2×86.4 mm for Industrial Application
PD057VT2 Characteristic
| Panel Brand : | PVI |
| Panel Model : | PD057VT2 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 5.7 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 115.2×86.4 mm |
| Outline : | 144×104.6×13.3 mm |
| Surface : | Antiglare |
| Brightness : | 500 cd/m2 (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | TTL (1 ch, 6-bit) , 33 pins |
| Input Voltage : | 3.3V (Typ.)(VCC) |
| Panel Size : | 5.7 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 141 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.060×0.180 mm (H×V) |
| Pixel Pitch : | 0.180×0.180 mm (H×V) |
| Weight : | 210±10g |
| Surface : | Antiglare ] |
| Active Area : | 115.2×86.4 mm (H×V) |
| Bezel Area : | 118.4×89.6 mm (H×V) |
| Outline Dimension : | 144×104.6 mm (H×V) |
| Outline Depth : | 13.0±0.3 mm |
| Holes & Brackets : | Rear mounting holes (4-Ф2.6) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Company Strength in LCD Screen Sourcing:
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| E1190CS021 | PDI | 1.9" | 144×128 |
| E1260CS021 | PDI | 2.6" | 232×128 |
| E1271CS021 | PDI | 2.7" | 264×176 |
| E1144CS021 | PDI | 1.44" | 128×96 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

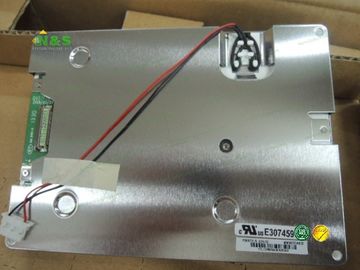

PD057VT2 Picture
