Product Details:
|
| Panel Size: | 3.5 Inch | Resolution: | 320(RGB)×234 |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Active Area: | 71.6×52.65 Mm |
| Outline: | 84.03×65.24×3.73 Mm | Surface: | Antiglare |
| High Light: | industrial lcd screen,industrial lcd panel |
||
PVI PD035OX4 LCD Displays 3.5 inch with 71.6×52.65 mm Active Area
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
PD035OX4 Main Parameters
| Panel Brand : | PVI |
| Panel Model : | PD035OX4 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 3.5 inch |
| Resolution : | 320(RGB)×234 |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 71.6×52.65 mm |
| Outline : | 84.03×65.24×3.73 mm |
| Surface : | Antiglare |
| Brightness : | 250 cd/m2 (Typ.) |
| Contrast Ratio : | 400:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/35/45 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 3S2P WLED |
| Signal Interface : | Digital RGB (8/24-bit), CCIR601/656 , 60 pins |
| Input Voltage : | 3.3/3.3/5.0/15/-15V (Typ.)(VCC/VDD1/VDD2/VGH/VEE) |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 250 cd/m2 (Typ.) |
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.7M (8-bit) |
| Response Time : | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 60/60/35/45 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.33/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable : | N |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| E1190CS021 | PDI | 1.9" | 144×128 |
| E1260CS021 | PDI | 2.6" | 232×128 |
| E1271CS021 | PDI | 2.7" | 264×176 |
| E1144CS021 | PDI | 1.44" | 128×96 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

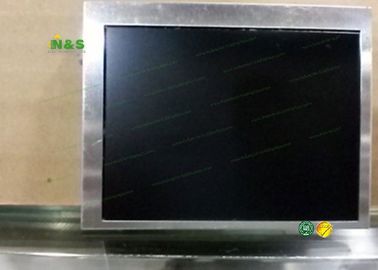

PD035OX4 Picture
