Product Details:
|
| Panel Size: | 10.4 Inch | Outline: | 243×185.1×13 Mm |
|---|---|---|---|
| Surface: | Antiglare | Display Colors: | 262K (6-bit) |
| High Light: | industrial lcd screen,industrial lcd panel |
||

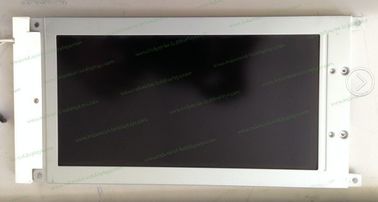

10.4 inch PD104VT5 PVI Normally White with 211.2×158.4 mm Active Area
PD104VT5 Characteristic
| Panel Brand : | PVI |
| Panel Model : | PD104VT5 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.4 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 211.2×158.4 mm |
| Outline : | 243×185.1×13 mm |
| Surface : | Antiglare |
| Brightness : | 330 cd/m² (Typ.) |
| Contrast Ratio : | 400:1 (Typ.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle : | 75/75/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL Without Driver |
| Signal Interface : | TTL (1 ch, 6-bit) , 30 pins |
| Input Voltage : | 3.3V (Typ.)(VDD) |
| Panel Size : | 10.4 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.110×0.330 mm (H×V) |
| Pixel Pitch : | 0.330×0.330 mm (H×V) |
| Weight : | 516±20g |
| Surface : | Antiglare |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 214.4×161.6 mm (H×V) |
| Outline Dimension : | 243×185.1 mm (H×V) |
| Outline Depth : | 12.5±0.5 mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel |
| Landscape or Portrait : | Landscape type |
