Product Details:
|
| Dot Pitch: | 0.082×0.246 Mm (H×V) | Pixel Pitch: | 0.246×0.246 Mm (H×V) |
|---|---|---|---|
| Weight: | 320g (Typ.) | Surface: | Antiglare, Hard Coating (3H) |
| Active Area: | 196.8×118.08 Mm (H×V) | Bezel Area: | 199.4×120.7 Mm (H×V) |
| High Light: | industrial touch screen display,industrial lcd panel |
||
Mitsubishi AA090ME01 9.0 inch with 196.8×118.08 mm for Industrial Application
AA090ME01 Main Parameters
| Panel Brand : | Mitsubishi |
| Panel Model : | AA090ME01 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 9.0 inch |
| Resolution : | 800(RGB)×480 , WVGA |
| Display Mode : | IPS, Normally Black, Transmissive |
| Active Area : | 196.8×118.08 mm |
| Outline : | 219×136.2×10 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 400 cd/m2 (Typ.) |
| Contrast Ratio : | 900:1 (Typ.) |
| Display Colors : | 262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 72% |
| Response Time : | 12/12 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 7S2P WLED |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 20 pins |
| Panel Size : | 9.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 103 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.082×0.246 mm (H×V) |
| Pixel Pitch : | 0.246×0.246 mm (H×V) |
| Weight : | 320g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 196.8×118.08 mm (H×V) |
| Bezel Area : | 199.4×120.7 mm (H×V) |
| Outline Dimension : | 219×136.2 mm (H×V) |
| Outline Depth : | 7.0/10.0 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AA084SD11-CA-01 | Mitsubishi | 8.4" | 800×600 |
| AA065VE11-DA-01 | Mitsubishi | 6.5" | 640×480 |
| AA084VC08 | Mitsubishi | 8.4" | 640×480 |
| AT070MJ01 | Mitsubishi | 7.0" | 800×480 |
| AA084SD11-DA-01 | Mitsubishi | 8.4" | 800×600 |
| AA104XF02--T1 | Mitsubishi | 10.4" | 1024×768 |
| AA104VJ02--T1 | Mitsubishi | 10.4" | 640×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

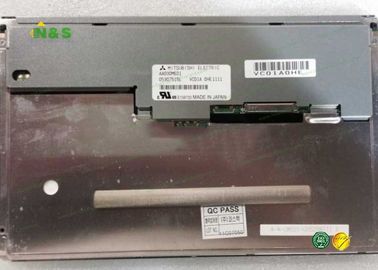

AA090ME01 Picture
