Product Details:
|
| Panel Brand: | WiseChip | Panel Model: | UG-9664HDDAG01 |
|---|---|---|---|
| Panel Type: | PM-OLED , OLED | Panel Size: | 0.95 Inch |
| Resolution: | 96(RGB)×64 | Active Area: | 20.14×13.42 Mm |
| Highlight: | industrial lcd screen,industrial lcd panel |
||
WiseChip UG-9664HDDAG01 0.95 inch with 20.14×13.42 mm for Industrial Application
UG-9664HDDAG01 Product Information
| Panel Brand : | WiseChip |
| Panel Model : | UG-9664HDDAG01 |
| Panel Type : | PM-OLED , OLED |
| Panel Size : | 0.95 inch |
| Resolution : | 96(RGB)×64 |
| Active Area : | 20.14×13.42 mm |
| Outline : | 25.7×22.2×1.6 mm |
| Brightness : | 100 cd/m2 (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) |
| Display Colors : | 65K |
| Viewing Angle : | 80/80/80/80 (Min.) (L/R/U/D) |
| Driver IC : | COG Built-in SSD1331Z |
| Signal Interface : | 8-bit 6800/8080 parallel, 4-wire SPI , 23 pins |
| Input Voltage : | 2.8/2.8/14.0V (Typ.)(VDD/VDDIO/VCC) |
| Panel Size : | 0.95 inch |
| Dot Resolution : | 96(RGB)×64 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 121 PPI |
| Aspect Ratio : | 15:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.07×0.21 mm (H×V) |
| Pixel Pitch : | 0.21×0.21 mm (H×V) |
| Weight : | 1.80g (Typ.) |
| Active Area : | 20.14×13.42 mm (H×V) |
| Bezel Area : | 22.14×15.42 mm (H×V) |
| Outline Dimension : | 25.7×22.2 mm (H×V) |
| Outline Depth : | 1.45±0.15 mm |
| Landscape or Portrait : | Landscape type |
Our Company Strength in LCD Screen Sourcing:
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| UG-9639AMBAG01 | WiseChip | 0.83" | 96×39 |
| UG-5664ASYBT01 | WiseChip | 3.1" | 256×64 |
| UG-2864GSWBG01 | WiseChip | 0.96" | 128×64 |
| UG-2864ASWAG01 | WiseChip | 0.96" | 128×64 |
| UG-9664GLBBT01 | WiseChip | 0.95" | 96×64 |
| UG-2832ALBAG01 | WiseChip | 0.91" | 128×32 |
| UG-0416ALBAG01 | WiseChip | 0.85" | 104×16 |
| UG-9639GLBAG01 | WiseChip | 0.82" | 96×39 |
| UG-6448ALBCG01 | WiseChip | 0.66" | 64×48 |
| UG-2864AGYDT26 | WiseChip | 2.7" | 128×64 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

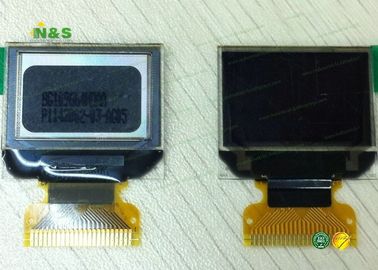

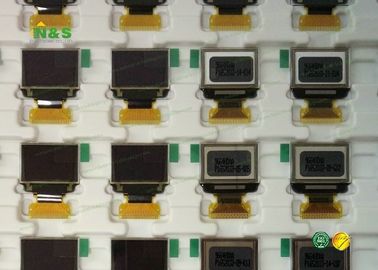

UG-9664HDDAG01 Picture
