Product Details:
|
| Panel Size: | 0.95 Inch | Resolution: | 96(RGB)×64 |
|---|---|---|---|
| Active Area: | 20.14×13.42 Mm | Outline: | 25.7×22.2×1.6 Mm |
| High Light: | industrial touch screen display,industrial lcd screen |
||

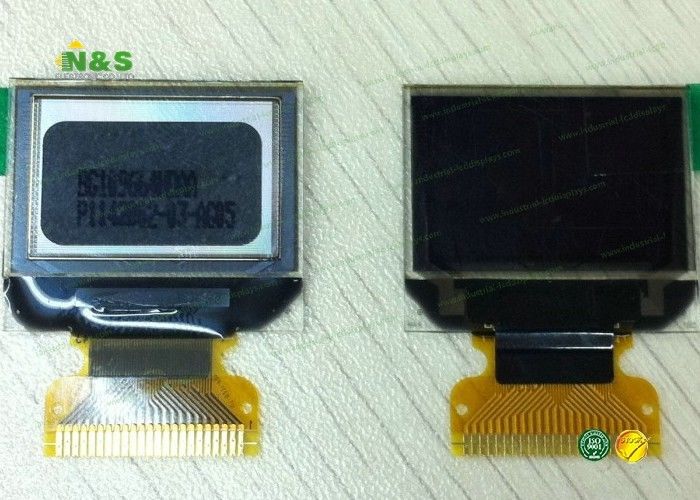

UG-9664HDDAG01 WiseChip 0.95 inch with 20.14×13.42 mm Active Area for Industrial Application panel
UG-9664HDDAG01 Characteristic
| Panel Brand : | WiseChip |
| Panel Model : | UG-9664HDDAG01 |
| Panel Type : | PM-OLED , OLED |
| Panel Size : | 0.95 inch |
| Resolution : | 96(RGB)×64 |
| Active Area : | 20.14×13.42 mm |
| Outline : | 25.7×22.2×1.6 mm |
| Brightness : | 100 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) |
| Display Colors : | 65K |
| Viewing Angle : | 80/80/80/80 (Min.) (L/R/U/D) |
| Driver IC : | COG Built-in SSD1331Z |
| Signal Interface : | 8-bit 6800/8080 parallel, 4-wire SPI , 23 pins |
| Input Voltage : | 2.8/2.8/14.0V (Typ.)(VDD/VDDIO/VCC) |
UG-9664HDDAG01 General Features
| Panel Size : | 0.95 inch |
| Dot Resolution : | 96(RGB)×64 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 121 PPI |
| Aspect Ratio : | 15:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.07×0.21 mm (H×V) |
| Pixel Pitch : | 0.21×0.21 mm (H×V) |
| Weight : | 1.80g (Typ.) |
| Active Area : | 20.14×13.42 mm (H×V) |
| Bezel Area : | 22.14×15.42 mm (H×V) |
| Outline Dimension : | 25.7×22.2 mm (H×V) |
| Outline Depth : | 1.45±0.15 mm |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED312TT2 | E Ink | 31.2" | 2560×1440 |
| ES133TE1 | E Ink | 13.3" | 2200×1650 |
| ES133TT2 | E Ink | 13.3" | 2200×1650 |
| ED133TT1 | E Ink | 13.3" | 2200×1650 |
| ED060SD1 | E Ink | 6.0" | 600×800 |
| ED060SCT | E Ink | 6.0" | 600×800 |
| ET043OC1 | E Ink | 4.4" | 360×640 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
