Product Details:
|
| Contrast Ratio: | 400:1 (Typ.) | Display Colors: | 16.2M (6-bit + FRC) , CIE1931 65% |
|---|---|---|---|
| Response Time: | 5/20 (Typ.)(Tr/Td) | Viewing Angle: | 70/70/60/65 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency: | 60Hz | Lamp Type: | 4 Pcs CCFL |
| Highlight: | samsung lcd panel replacement,samsung lcd display panel |
||
Samsung LCD Panel LTA150XH-L06 15.0 inch Antiglare with 304.1×228.1 mm
LTA150XH-L06 Product Information
| Panel Brand : | SAMSUNG |
| Panel Model : | LTA150XH-L06 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 15.0 inch |
| Resolution : | 1024(RGB)×768 , XGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 304.1×228.1 mm |
| Outline : | 331.6×254.8×13 mm |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness : | 400 cd/m2 (Typ.) |
| Contrast Ratio : | 400:1 (Typ.) |
| Display Colors : | 16.2M (6-bit + FRC) , CIE1931 65% |
| Response Time : | 5/20 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/60/65 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 pcs CCFL |
| Signal Interface : | LVDS (1 ch, 8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 15.0 inch |
| Dot Resolution : | 1024(RGB)×768 (XGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 85 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.099×0.297 mm (H×V) |
| Pixel Pitch : | 0.297×0.297 mm (H×V) |
| Weight : | 1.35Kgs (Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 304.1×228.1 mm (H×V) |
| Bezel Area : | 307.2×231.1 mm (H×V) |
| Outline Dimension : | 331.6×254.8 mm (H×V) |
| Outline Depth : | 12.5±0.5 mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.2, 2-R1.6) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
Packaging & Shipping:
Delivery Information:
Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
Shipping Method:
By Express: FedEx, DHL, EMS, TNT, UPS,
By Logistics: By air
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
If by T/T, shipping address as communicate.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| AMS429QC14 | Samsung | 4.3" | 540×960 |
| AMS300FW01-0 | Samsung | 3.0" | 240×400 |
| AMS260CM61 | Samsung | 2.6" | 240×320 |
| AMS410GJ01-0 | Samsung | 4.1" | 480×800 |
| AMS397GE37 | Samsung | 4.0" | 480×800 |
| AMFN888 | Samsung | 3.1" | 480×800 |
| AMS326PM01 | Samsung | 3.3" | 854×480 |
| AMBB004 | Samsung | 2.2" | 240×320 |

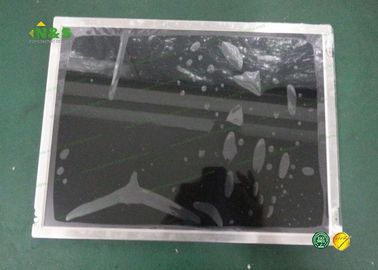

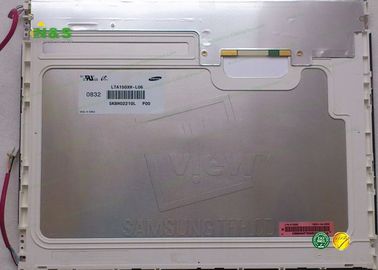

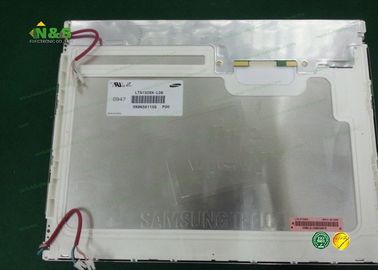

LTA150XH-L06 Picture
