Product Details:
|
| Outline: | 352×230×9.5 Mm | Surface: | Antiglare, Hard Coating (3H) |
|---|---|---|---|
| Brightness: | 450 Cd/m² (Typ.) | Contrast Ratio: | 700:1 (Typ.) |
| Display Colors: | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 56% | Response Time: | 5/11 (Typ.)(Tr/Td) |
| Highlight: | tft lcd display,lcd monitor panel |
||
G154I1-LE1 INNOLUX Chimei LCD Panel 15.4 inc Antiglare for Industrial Application
G154I1-LE1 Main Parameters
| Panel Brand : | CHIMEI INNOLUX |
| Panel Model : | G154I1-LE1 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 15.4 inch |
| Resolution : | 1280(RGB)×800 , WXGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 331.2×207 mm |
| Outline : | 352×230×9.5 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 450 cd/m2 (Typ.) |
| Contrast Ratio : | 700:1 (Typ.) |
| Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 56% |
| Response Time : | 5/11 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/70/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6 strings WLED |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 30 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 15.4 inch |
| Dot Resolution : | 1280(RGB)×800 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 98 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.08625×0.25875 mm (H×V) |
| Pixel Pitch : | 0.25875×0.25875 mm (H×V) |
| Weight : | 880g (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 331.2×207 mm (H×V) |
| Bezel Area : | 334.5×210.3 mm (H×V) |
| Outline Dimension : | 352×230 mm (H×V) |
| Outline Depth : | 9.0±0.5 mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| EE030NA-04A | Innolux | 3.0" | 960×480(dot) |
| V420H2-PS2 Rev.C1 | Innolux | 42" | 1920×1080 |
| F055A03-601 | Innolux | 5.5" | 720×1280 |
| F04501-01Z | Innolux | 4.5" | 540×960 |
| V546HK3-PS5 Rev.C1 | Innolux | 55" | 1920×1080 |
| V216B1-PN1 | Innolux | 21.6" | 1366×768 |

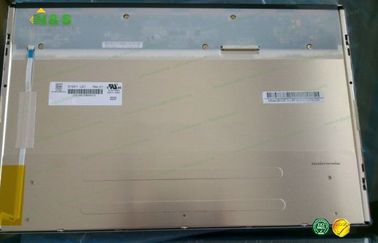

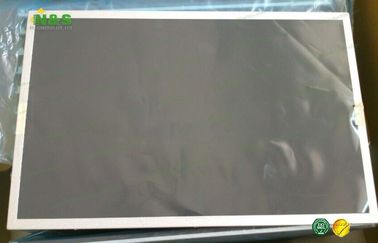

Details Picture for G154I1-LE1
