Product Details:
|
| Contrast Ratio: | 1000:1 (Typ.) | Display Colors: | 16.7M (8-bit) , CIE1931 70% |
|---|---|---|---|
| Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) | Frequency: | 60Hz |
| Lamp Type: | WLED | Signal Interface: | MIPI (4 Data Lanes) , 30 Pins |
| Highlight: | sharp lcd display panels,sharp lcd screen |
||
LS055T1SX01 5.5 inch Sharp Commercial Displays 71.72×130.4×1.81 mm Outline
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
After-sale service:
1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare
LS055T1SX01 Quick Details:
| Panel Brand : | SHARP |
| Panel Model : | LS055T1SX01 |
| Panel Type : | CG-Silicon , LCM |
| Panel Size : | 5.5 inch |
| Resolution : | 1080(RGB)×1920 , FHD |
| Display Mode : | Normally Black, Transmissive |
| Active Area : | 69.012×122.688 mm |
| Outline : | 71.72×130.4×1.81 mm |
| Surface : | Clear |
| Brightness : | 500 cd/m2 (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 70% |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED |
| Signal Interface : | MIPI (4 data lanes) , 30 pins |
| Input Voltage : | 1.8/5.6/-5.4V (Typ.)(VDDIO/VSP/VSN) |
| Panel Size : | 5.5 inch |
| Dot Resolution : | 1080(RGB)×1920 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 397 PPI |
| Aspect Ratio : | 9:16 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0213×0.0639 mm (H×V) |
| Pixel Pitch : | 0.0639×0.0639 mm (H×V) |
| Weight : | 25.0g (Typ.) |
| Surface : | Clear |
| Active Area : | 69.012×122.688 mm (H×V) |
| Bezel Area : | 70.01×123.688 mm (H×V) |
| Outline Dimension : | 71.72×130.4 mm (H×V) |
| Outline Depth : | 1.66±0.15 mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM121VB1T02 | SHARP | 12.1" | 640×480 |
| LM121VB1T01 | SHARP | 12.1" | 640×480 |
| LM32015T | SHARP | 5.7" | 320×240 |
| LM8V302D | SHARP | 7.7" | 640×480 |
| LM104VC1T51 R | SHARP | 10.4" | 640×480 |
| LM104VC1T51 | SHARP | 10.4" | 640×480 |
| LM7M632R | SHARP | 6.5" | 640×240 |
| LM64P30R | SHARP | 9.4" | 640×480 |
| LM320195 | SHARP | 5.7" | 320×240 |
| LM320194 | SHARP | 5.7" | 320×240 |
| LM24013W | SHARP | 4.6" | 240×64 |
| LM065HB1T01 | SHARP | 6.5" | 640×240 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

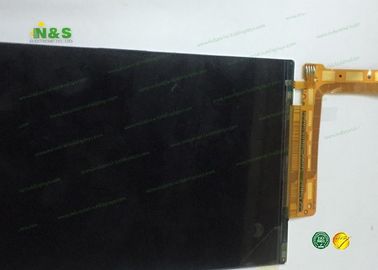

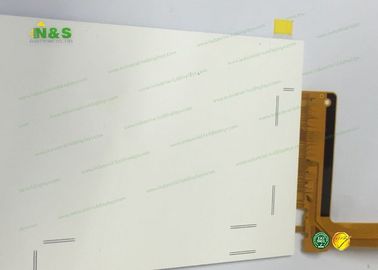

LS055T1SX01 Picture
