Product Details:
|
| Panel Size: | 10.4 Inch | Resolution: | 640(RGB)×480 , VGA |
|---|---|---|---|
| Display Mode: | TN, Normally White, Transmissive | Active Area: | 211.2×158.4 Mm |
| Outline: | 243×185.1×11 Mm | Surface: | Clear, Hard Coating (3H) |
| Highlight: | nec lcd touch screen,nec tft lcd |
||
NL6448BC33-54 10.4 inch NEC LCD Panel 211.2×158.4 mm for Industrial Application
NL6448BC33-54 Main Parameters
| Panel Brand : | NEC |
| Panel Model : | NL6448BC33-54 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 10.4 inch |
| Resolution : | 640(RGB)×480 , VGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 211.2×158.4 mm |
| Outline : | 243×185.1×11 mm |
| Surface : | Clear, Hard coating (3H) |
| Brightness : | 220 cd/m2 (Typ.) |
| Contrast Ratio : | 350:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 40% |
| Response Time : | 15/23 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/30/20 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 2 pcs CCFL |
| Signal Interface : | CMOS (1 ch, 6-bit) , 31 pins |
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
Our Services
1. Quick and accurate reply with best service attidue to our business
2. Pofessional advise
3. Quick PI confirmation
4. Close production follow up and production process feedback
| Panel Size : | 10.4 inch |
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.110×0.330 mm (H×V) |
| Pixel Pitch : | 0.330×0.330 mm (H×V) |
| Weight : | 465/490g (Typ./Max.) |
| Surface : | Clear, Hard coating (3H) |
| Active Area : | 211.2×158.4 mm (H×V) |
| Bezel Area : | 215.4×161.8 mm (H×V) |
| Outline Dimension : | 243×185.1 mm (H×V) |
| Outline Depth : | 10.5±0.5 mm |
| Holes & Brackets : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TM060SDH01 | Tianma | 6.0" | 800×600 |
| TM128128A4KFWGWC69-1 | Tianma | 1.5" | 128×128 |
| TM12864LCAWG | Tianma | 2.2" | 128×64 |
| TM9616AGHWGNA | Tianma | 0.84" | 96×16 |
| TM128160LKFWG5-1 | Tianma | 1.8" | 128×160 |
| TM320240EGFWVSWD | Tianma | 5.7" | 320×240 |
| TM320240ECCWVSWD | Tianma | 5.7" | 320×240 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

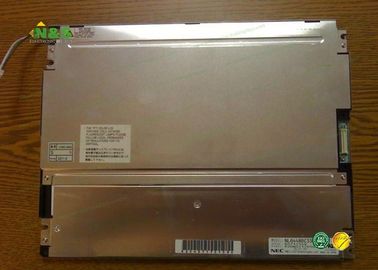

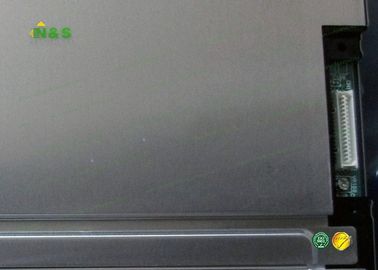

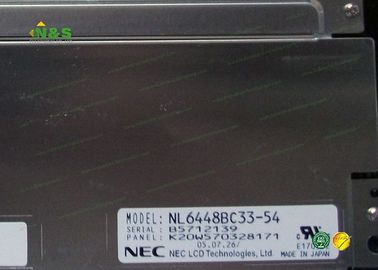

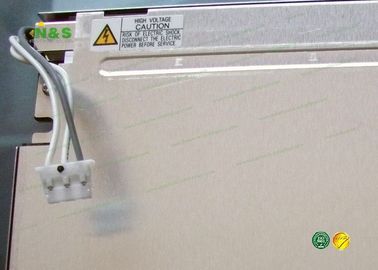

NL6448BC33-54 Picture
