Product Details:
|
| Panel Model: | G084SN03 V1 | Panel Type: | A-Si TFT-LCD , LCM |
|---|---|---|---|
| Panel Size: | 8.4 Inch | Resolution: | 800(RGB)×600 , SVGA |
| Highlight: | auo display panel,auo lcd screen |
||
8.4 Inch AUO G084SN03 V1 Hard coating tft lcd module with 170.4×127.8 mm Active Area
G084SN03 V1 Product Information
| Panel Brand : | AUO |
| Panel Model : | G084SN03 V1 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 8.4 inch |
| Resolution : | 800(RGB)×600 , SVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 170.4×127.8 mm |
| Outline : | 203×142.5 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 250 cd/m2 (Typ.) |
| Contrast Ratio : | 600:1 (Typ.) |
| Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 45% |
| Response Time : | 20/10 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 1 pcs CCFL |
| Signal Interface : | LVDS (1 ch, 6/8-bit) , 20 pins |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| H020HD01 V0 | AUO | 2.0" | 176×220 |
| A020AE01 V0 | AUO | 2.0" | 172×72 |
| A060SE03 V0 | AUO | 6.0" | 600×800 |
| A060XE01 V1 | AUO | 6.0" | 768×1024 |
| A060SE02 V8 | AUO | 6.0" | 800×600 |
| A090XE02 V3 | AUO | 9.0" | 1024×768 |
| A060SE02 VC | AUO | 6.0" | 800×600 |
| A060SE02 V9 | AUO | 6.0" | 800×600 |
| A021AE01 V0 | AUO | 2.1" | |
| A029AE01 V1 | AUO | 2.9" | 230×90 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 250 cd/m2 (Typ.) |
| Contrast Ratio : | 600 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Gamut : | 45% NTSC (CIE1931) |
| Response Time : | 20/10 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 12 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| White Variation : | 1.43 (Max.)(9 points) |
| Sunlight Readable : | N |

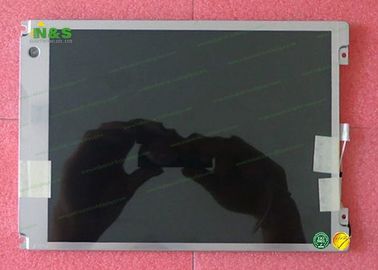

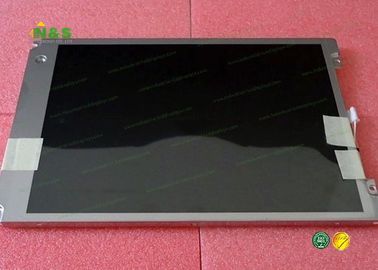

G084SN03 V1 Picture
