Product Details:
|
| Panel Brand: | INNOLUX | Panel Model: | N080ICE-GB1 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 8.0 Inch |
| High Light: | tft lcd display,innolux lcd screen |
||
N080ICE-GB1 Innolux LCD Panel Displays 8.0 inch 107.64×172.224 mm
N080ICE-GB1 General Features
| Panel Brand : | INNOLUX |
| Panel Model : | N080ICE-GB1 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 8.0 inch |
| Resolution : | 800(RGB)×1280 , WXGA |
| Display Mode : | AAS, Normally Black, Transmissive |
| Active Area : | 107.64×172.224 mm |
| Outline : | 120.65×187.64×5.1 mm |
| Surface : | Hard coating (3H), Antireflection |
| Brightness : | 350 cd/m2 (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 60% |
| Response Time : | 25 (Typ.)(Tr+Tf) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LH500X01-SH01 | LG Display | 5.0" | 768×1024 |
| LH500WX1-SH03 | LG Display | 5.0" | 720×1280 |
| LH450WV4-SH02 | LG Display | 4.5" | 480×800 |
| LH430WV4-SH01 | LG Display | 4.3" | 480×800 |
| LH430WV1-SH05 | LG Display | 4.3" | 480×800 |
| LH430M02-SH01 | LG Display | 4.3" | 540×960 |
| LH350H05-SH03 | LG Display | 3.5" | 320×480 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
| Panel Size : | 8.0 inch |
| Dot Resolution : | 800(RGB)×1280 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 188 PPI |
| Aspect Ratio : | 10:16 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.04485×0.13455 mm (H×V) |
| Pixel Pitch : | 0.13455×0.13455 mm (H×V) |
| Weight : | 99.0g (Max.) |
| Surface : | Hard coating (3H), Antireflection |
| Active Area : | 107.64×172.224 mm (H×V) |
| Outline Dimension : | 120.65×187.64 mm (H×V) |
| Outline Depth : | 2.9/5.1 (Typ./Max.) mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |

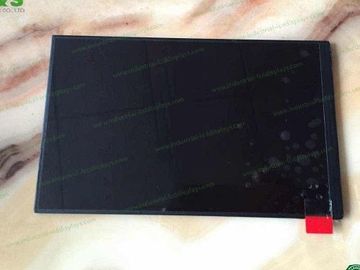

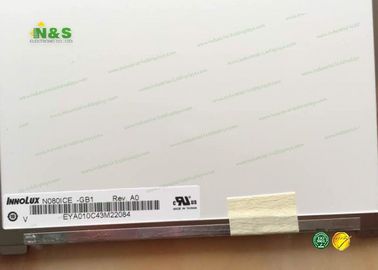

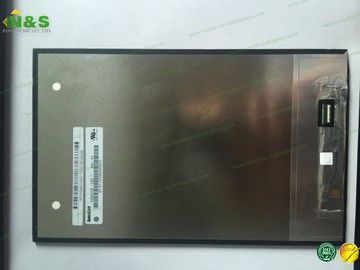

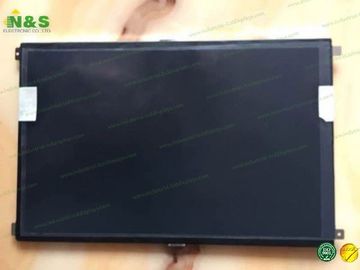

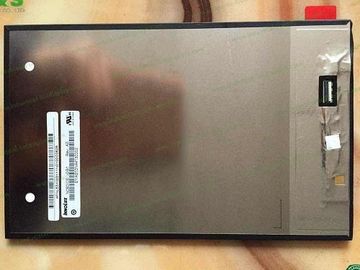

N080ICE-GB1 Picture
