Product Details:
|
| Dot Resolution: | 480(RGB)×272 (WQVGA) | Pixel Density: | 128 PPI |
|---|---|---|---|
| Form Factor: | Flat Rectangle Display | Pixel Pitch: | 0.198×0.198 Mm (H×V) |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||

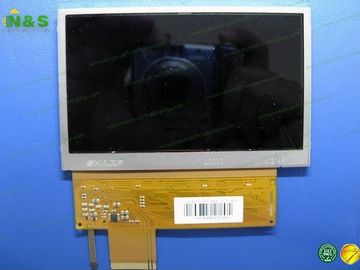

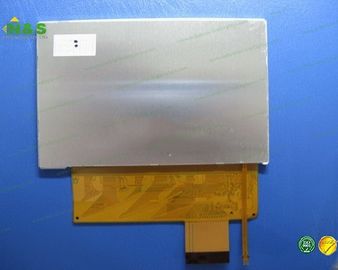

4.3 Inch Sharp LCD Panel LQ043T3DX04 for Pocket TV panel , 128 PPI Pixel Density
| Panel Brand : | SHARP |
| Panel Model : | LQ043T3DX04 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 4.3 inch |
| Resolution : | 480(RGB)×272 , WQVGA |
| Display Mode : | ASV, Normally Black, Transmissive |
| Active Area : | 95.04×53.856 mm |
| Outline : | 105.5×67.2 mm |
| Surface : | Clear, Hard coating |
| Brightness : | 230 cd/m2 (Typ.) |
| Contrast Ratio : | 400:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 30/30 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 7S1P WLED Without Driver |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) , 40 pins |
| Input Voltage : | 2.5/5.0V (Typ.)(VCC/AVDD) |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
LQ043T3DX04 General Features
| Panel Size : | 4.3 inch |
| Dot Resolution : | 480(RGB)×272 (WQVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 128 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.066×0.198 mm (H×V) |
| Pixel Pitch : | 0.198×0.198 mm (H×V) |
| Weight : | 50.0g (Typ.) |
| Surface : | Clear, Hard coating |
| Active Area : | 95.04×53.856 mm (H×V) |
| Bezel Area : | 98.7×57.5 mm (H×V) |
| Outline Dimension : | 105.5×67.2 mm (H×V) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM016LC1S07 | SHARP | 1.9" | 96×128 |
| LS050K3SX06A | SHARP | 5.0" | 720×1280 |
| LK460D3HA10 | SHARP | 46" | 1920×1080 |
| LK315T3HB874 | SHARP | 31.5" | 1366×768 |
| LK315T3HB873 | SHARP | 31.5" | 1366×768 |
| LQ0DZC0156 | SHARP | 40" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
