Product Details:
|
| Pixel Density: | 376 PPI | Aspect Ratio: | 9:16 (H:V) |
|---|---|---|---|
| Dot Pitch: | 0.0225×0.0675 Mm (H×V) | Dot Resolution: | 1080(RGB)×1920 (FHD) |
| High Light: | sharp lcd display panels,sharp lcd screen |
||

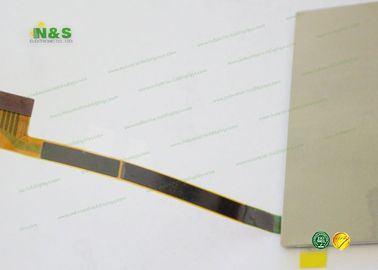

SHARP LS059T1SX01 5.9 inch Normally Black with 72.9×129.6 mm for Mobile phone panel
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
LS059T1SX01 Detailed Product Description
| Panel Brand : | SHARP |
| Panel Model : | LS059T1SX01 |
| Panel Type : | CG-Silicon , LCM |
| Panel Size : | 5.9 inch |
| Resolution : | 1080(RGB)×1920 , FHD |
| Display Mode : | Normally Black, Transmissive |
| Active Area : | 72.9×129.6 mm |
| Outline : | 76.2×139.1 mm |
| Surface : | Clear |
| Brightness : | 400 cd/m2 (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 70% |
| Response Time : | TBD |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 7S2P WLED |

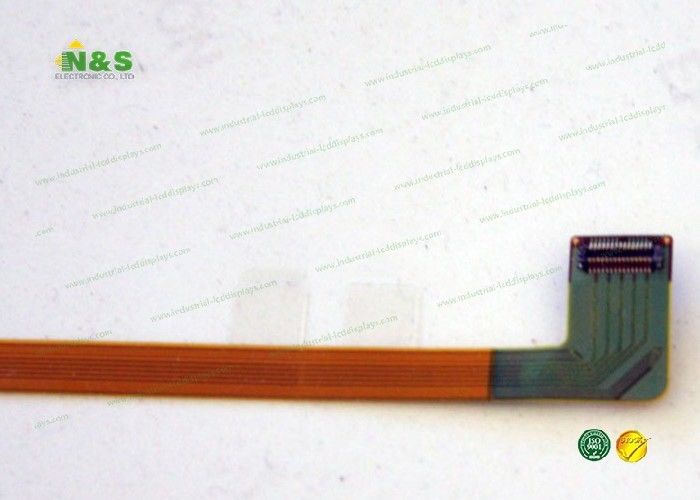

| Signal Interface : | MIPI (4 data lanes) , 30 pins |
| Input Voltage : | 1.8/5.6/-5.4V (Typ.)(VDDIO/VSP/VSN) |
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
SHARP LS059T1SX01 Mechanical Features
| Panel Size : | 5.9 inch |
| Dot Resolution : | 1080(RGB)×1920 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 376 PPI |
| Aspect Ratio : | 9:16 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0225×0.0675 mm (H×V) |
| Pixel Pitch : | 0.0675×0.0675 mm (H×V) |
| Weight : | 33g |
| Surface : | Clear |
| Active Area : | 72.9×129.6 mm (H×V) |
| Bezel Area : | 73.9×130.6 mm (H×V) |
| Outline Dimension : | 76.2×139.1 mm (H×V) |
| Outline Depth : | 1.65 mm |
