Product Details:
|
| Panel Brand: | Samsung | Panel Model: | LTM240W1-L04 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 24.0 Inch |
| Resolution: | 1920(RGB)×1200 , WUXGA | Display Mode: | APVA, Normally Black, Transmissive |
| Highlight: | samsung lcd panel replacement,samsung lcd display panel |
||
24.0 Inch Samsung LCD Panel LTM240W1-L04 with 518.4×324 mm Active Area
LTM240W1-L04 Detail
| Panel Brand : | SAMSUNG |
| Panel Model : | LTM240W1-L04 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 24.0 inch |
| Resolution : | 1920(RGB)×1200 , WUXGA |
| Display Mode : | APVA, Normally Black, Transmissive |
| Active Area : | 518.4×324 mm |
| Outline : | 569.1×368.4 mm |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness : | 270 cd/m² (Typ.) |
| Contrast Ratio : | 700:1 (Min.) |
| Display Colors : | 16.7M (8-bit) |
| Response Time : | 16 (Typ.)(Tr+Td) |
| Viewing Angle : | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 6 pcs CCFL Without Driver |
| Signal Interface : | OpenLDI , 43 pins |
| Input Voltage : | 5.0V (Typ.) |
| Panel Size : | 24.0 inch |
| Dot Resolution : | 1920(RGB)×1200 (WUXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 94 PPI |
| Aspect Ratio : | 16:10 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.090×0.270 mm (H×V) |
| Pixel Pitch : | 0.270×0.270 mm (H×V) |
| Weight : | 5.65Kgs (Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 518.4×324 mm (H×V) |
| Bezel Area : | 522.4×328.0 mm (H×V) |
| Outline Dimension : | 569.1×368.4 mm (H×V) |
| Outline Depth : | 30.9 (Max.) mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.

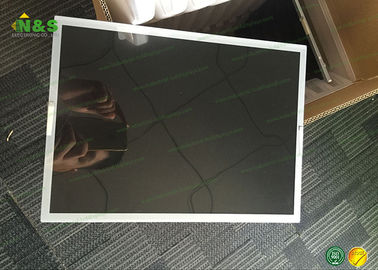

LTM240W1-L04 Picture
