Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 3.0 Inch |
|---|---|---|---|
| Resolution: | 240(RGB)×400 , WQVGA | Display Mode: | Normally Black, Transmissive |
| Active Area: | 38.88×64.8 Mm | Outline: | 44.88×74.9 Mm |
| High Light: | sharp lcd screen,sharp lcd flat screen |
||

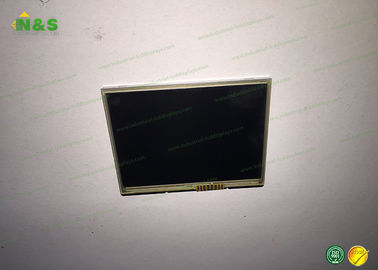

LQ030B3UX02 SHARP LCD Pane 20.0 inch Hard coating LCM 1600×900 250 1000:1 16.7M WLED LVDS
| Panel Size : | 3.0 inch |
|---|---|
| Dot Resolution : | 240(RGB)×400 (WQVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 156 PPI |
| Aspect Ratio : | 3:5 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.054×0.162 mm (H×V) |
| Pixel Pitch : | 0.162×0.162 mm (H×V) |
| Weight : | 15.5g |
| Surface : | Clear |
| Active Area : | 38.88×64.8 mm (H×V) |
| Bezel Area : | 40.08×66 mm (H×V) |
| Outline Dimension : | 44.88×74.9 mm (H×V) |
| Outline Depth : | 2.0 mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Without |
| Display Mode : | Normally Black, Transmissive |
|---|---|
| Brightness : | 400 cd/m² (Typ.) |
| Contrast Ratio : | 500 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 75% NTSC (CIE1931) |
| Response Time : | 11/24 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥5) (L/R/U/D) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.300; Wy:0.310 |
| White Variation : | 1.25 (Max.)(9 points) |
| Sunlight Readable : | N |
