Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 3.5 Inch |
|---|---|---|---|
| Resolution: | 560×220 | Display Mode: | TN, Normally White, Transflective |
| Active Area: | 72.2×50.4 Mm | Outline: | 87.5×63.3 Mm |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
3.5 inch Normally White LQ035A3GH21 SHARP Display PANEL with 72.2×50.4 mm
LQ035A3GH21 Information
| Panel Size : | 3.5 inch |
|---|---|
| Dot Resolution : | 560×220 |
| Pixel Configuration : | RGB Delta |
| Pixel Density : | 83 PPI |
| Aspect Ratio : | 7:5 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.129×0.229 mm (H×V) |
| Weight : | TBD |
| Active Area : | 72.2×50.4 mm (H×V) |
| Outline Dimension : | 87.5×63.3 mm (H×V) |
| Outline Depth : | 14.5 (Typ.) mm |
| Holes & Brackets : | Rear mounting Pole (4-Φ1.7) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
| Display Mode : | TN, Normally White, Transmissive |
|---|---|
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 100 : 1 (Min.) (Transmissive) |
| Display Color : | Full color () |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 45/45/10/30 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| Sunlight Readable : | N |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LM016LC1S07 | SHARP | 1.9" | 96×128 |
| LS050K3SX06A | SHARP | 5.0" | 720×1280 |
| LK460D3HA10 | SHARP | 46" | 1920×1080 |
| LK315T3HB874 | SHARP | 31.5" | 1366×768 |
| LK315T3HB873 | SHARP | 31.5" | 1366×768 |
| LQ0DZC0156 | SHARP | 40" | 1920×1080 |
| LX080M1BB01 | SHARP | 8.0" | 1920×1200 |
| LS050K3SX09 | SHARP | 5.0" | 720×1280 |
| LQ315D1EG02 | SHARP | 31.5" | 3840×2160 |
| JE0DZ1C0093 | SHARP | 60" | 1920×1080 |
| LK460D3FZ10 | SHARP | 46" | 1920×1080 |
| LQ0DZC0128 | SHARP | 31.5" | 1366×768 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

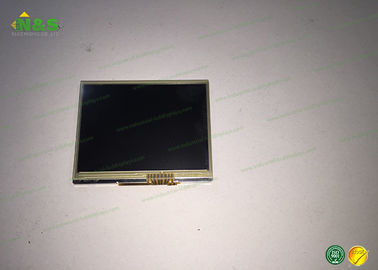

LQ035A3GH21 Picture
