Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 3.5 Inch |
|---|---|---|---|
| Resolution: | 240(RGB)×320 , QVGA | Display Mode: | TN, Normally White, Transflective |
| Active Area: | 53.64×71.52 Mm | Outline: | 65×86.2×4.2 Mm |
| Highlight: | sharp lcd display panels,sharp lcd screen |
||
LQ035Q7DH02F 3.5 inch SHARP Display PANEL Portrait type with 53.64×71.52 mm Active Area
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.
LQ035Q7DH02F Specification
| Panel Size : | 3.5 inch |
|---|---|
| Dot Resolution : | 240(RGB)×320 (QVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 113 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0745×0.2235 mm (H×V) |
| Pixel Pitch : | 0.2235×0.2235 mm (H×V) |
| Weight : | 45.0g (Typ.) |
| Surface : | Hard coating (3H) |
| Active Area : | 53.64×71.52 mm (H×V) |
| Bezel Area : | 57.4×75.2 mm (H×V) |
| Outline Dimension : | 65×86.2 mm (H×V) |
| Outline Depth : | 4.0±0.2 mm |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Embeded (4-wire Resistive) |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
| Display Mode : | TN, Normally White, Transflective |
|---|---|
| Brightness : | 100 cd/m² (Typ.) |
| Contrast Ratio : | 80 : 1 (Typ.) (Transmissive) |
| Contrast Ratio : | 3:1 (Typ.) (Reflective) |
| Display Color : | 262K (6-bit) |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 40/40/40/50 (Typ.)(CR≥2) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| Reflectance Ratio : | 2.5/4% (Min./Typ.) |
| Sunlight Readable : | Y |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LK315T3HC1K | SHARP | 31.5" | 1366×768 |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |

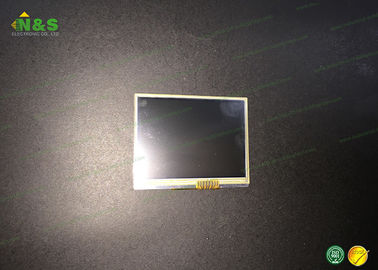

LQ035Q7DH02F Picture
