Product Details:
|
| Product Number: | SP10Q010 | Resolution: | 320×240 |
|---|---|---|---|
| C/R: | 20:1 | Brightness: | 110 |
| Backlight: | WLED | Size: | 3.8" |
| High Light: | small lcd panel,digital lcd display |
||

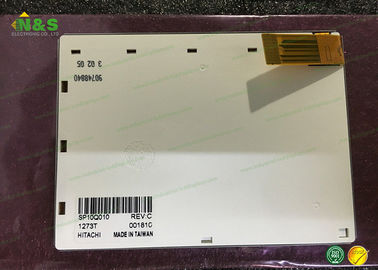

SP10Q010-TZA SP10Q010 KOE LCD Display , 3.8 inch 320*240 TFT LCD Screen
| Panel Brand : | KOE |
| Panel Model : | SP10Q010 |
| Panel Type : | FSTN-LCD , LCM |
| Panel Size : | 3.8 inch |
| Resolution : | 320×240 , QVGA |
| Display Mode : | STN, Black/White (Negative), Transmissive |
| Active Area : | 76.785×57.585 mm |
| Outline : | 94.7×73.3×6 mm |
| Surface : | Glare (Haze 0%) |
| Brightness : | 110 cd/m² (Typ.) |
| Contrast Ratio : | 20:1 (Typ.) |
| Display Colors : | Monochrome |
| Response Time : | 150/350 (Typ.)(Tr/Td) |
| Panel Brand : | |
|---|---|
| Panel Model : | SP10Q010 |
| Panel Type : | FSTN-LCD , LCM |
| Application : |
|
| Operating Temperature : | -20 ~ 70 °C |
| Storage Temperature : | -30 ~ 80 °C |
| RoHS : | |
| Specific Feature : |
|
