Product Details:
|
| Outline: | 457×350×37 Mm | Brightness: | 950 Cd/m² (Typ.) |
|---|---|---|---|
| Contrast Ratio: | 800:1 (Typ.) | Display Colors: | 16.7M (8-bit) , CIE1931 72% |
| Highlight: | nec lcd touch screen,nec tft lcd |
||
Hard coating NL160120AC27-20 NEC LCD Panel 21.3 inch for Medical Display panel
NL160120AC27-20 Specification
| Panel Brand : | NEC |
| Panel Model : | NL160120AC27-20 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 21.3 inch |
| Resolution : | 1600(RGB)×1200 , UXGA |
| Display Mode : | SA-SFT, Normally Black, Transmissive |
| Active Area : | 432×324 mm |
| Outline : | 457×350×37 mm |
| Surface : | Antiglare, Hard coating (2H) |
| Brightness : | 950 cd/m² (Typ.) |
| Contrast Ratio : | 800:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 72% |
| Response Time : | 14/11 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 16 pcs CCFL Embedded (Inverter) |
| Signal Interface : | LVDS (2 ch, 8-bit) , 40 pins |
| Input Voltage : | 12.0V (Typ.) |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
| Panel Size : | 21.3 inch |
| Dot Resolution : | 1600(RGB)×1200 (UXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 94 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.090×0.270 mm (H×V) |
| Pixel Pitch : | 0.270×0.270 mm (H×V) |
| Weight : | 2.90/3.10Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (2H) |
| Active Area : | 432×324 mm (H×V) |
| Bezel Area : | 438.2×330.0 mm (H×V) |
| Outline Dimension : | 457×350 mm (H×V) |
| Outline Depth : | 34.0/37.0 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packaging & Shipping for Our LCD panel
1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
Other shipping terms can also be arranged according to specific requirements.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED080XC2 | E Ink | 8.0" | 1024×768 |
| PM049OX1 | E Ink | 4.9" | 266×600 |
| PW100XU2 | E Ink | 10.0" | 640×468 |
| PW090XUD | E Ink | 9.0" | 640×220 |
| PW090XUC | E Ink | 9.0" | 640×220 |
| PW090XUB | E Ink | 9.0" | 640×220 |
| PW090XUA | E Ink | 9.0" | 640×220 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

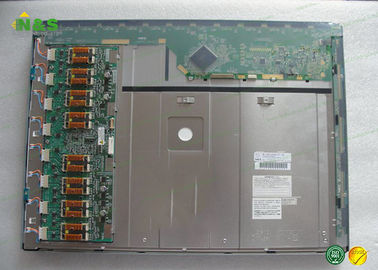

NL160120AC27-20 NEC LCD Panel Picture
