Product Details:
|
| Panel Type: | A-Si TFT-LCD , LCM | Resolution: | 1280(RGB)×768 , WXGA |
|---|---|---|---|
| Active Area: | 334.08×200.45 Mm | Outline: | 358×226 Mm |
| Contrast Ratio: | 1000:1 (Typ.) | Response Time: | 14/11 (Typ.)(Tr/Td) |
| Highlight: | nec lcd touch screen,nec tft lcd |
||
Normally Black 15.3 inch NL12876BC26-28 NEC LCD Panel with 334.08×200.45 mm
NL12876BC26-28 Specification
| Panel Brand : | NEC |
| Panel Model : | NL12876BC26-28 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 15.3 inch |
| Resolution : | 1280(RGB)×768 , WXGA |
| Display Mode : | UA-SFT, Normally Black, Transmissive |
| Active Area : | 334.08×200.45 mm |
| Outline : | 358×226 mm |
| Surface : | Antiglare, Hard coating (3H) |
| Brightness : | 330 cd/m² (Typ.) |
| Contrast Ratio : | 1000:1 (Typ.) |
| Display Colors : | 16.7M (6-bit + Hi-FRC) , CIE1931 72% |
| Response Time : | 14/11 (Typ.)(Tr/Td) |
| Viewing Angle : | 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 pcs CCFL Without Driver |
| Signal Interface : | LVDS (1 ch, 8-bit) , 20 pins |
| Input Voltage : | 3.3V (Typ.) |
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| ED0970C1 | E Ink | 9.7" | 1200×825 |
| ED097OC1 | E Ink | 9.7" | 1200×825 |
| ED080XC2 | E Ink | 8.0" | 1024×768 |
| ED080XC1 | E Ink | 8.0" | 1024×768 |
| ED060SC3 | E Ink | 6.0" | 800×600 |
| ED050SC1 | E Ink | 5.0" | 800×600 |
| PD035QX7 | E Ink | 3.5" | 320×240 |
| PW070DS6 | E Ink | 7.0" | 480×234 |
| Panel Size : | 15.3 inch |
| Dot Resolution : | 1280(RGB)×768 (WXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 97 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.087×0.261 mm (H×V) |
| Pixel Pitch : | 0.261×0.261 mm (H×V) |
| Weight : | 1.27/1.40Kgs (Typ./Max.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 334.08×200.45 mm (H×V) |
| Bezel Area : | 336.2×202.8 mm (H×V) |
| Outline Dimension : | 358×226 mm (H×V) |
| Outline Depth : | 15.8/16.8 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Shipment for the LCD Display Panels:
1. Safe & Professional package for our LCD panels.
2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.
3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.
4. All our LCD panel will be tested pcs by pcs before been shipped out.

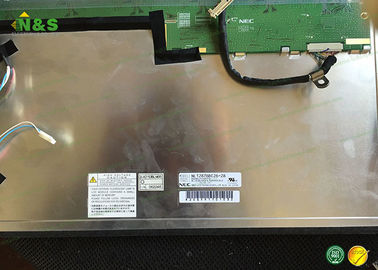

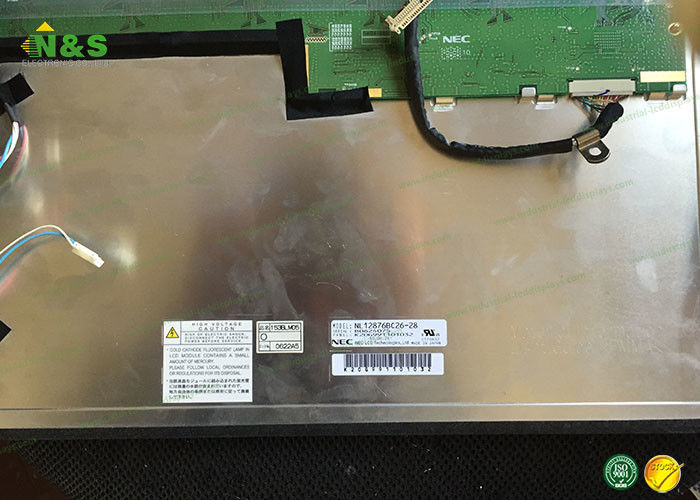

NL12876BC26-28 NEC LCD Panel Picture
