Product Details:
|
| Panel Size :: | 7.0 Inch | Resolution :: | 800(RGB)×480 , WVGA |
|---|---|---|---|
| Active Area :: | 152.4×91.44 Mm | Outline :: | 165×104×5.5 Mm |
| Surface :: | Antiglare | Brightness :: | 200 Cd/m² (Typ.) |
| High Light: | tft lcd display,innolux lcd screen |
||

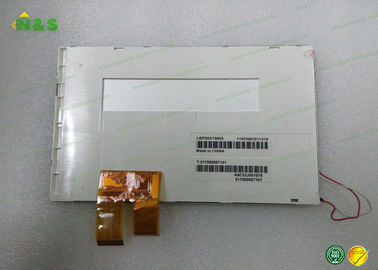

7.0 inch LW700AT9005d ChiHsin LCD Panel with 152.4×91.44 mm Active Area
LW700AT9005d Information
| Panel Size : | 7.0 inch |
| Dot Resolution : | 800(RGB)×480 (WVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 133 PPI |
| Aspect Ratio : | 15:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0635×0.1905 mm (H×V) |
| Pixel Pitch : | 0.1905×0.1905 mm (H×V) |
| Weight : | 120.8g |
| Surface : | Antiglare |
| Active Area : | 152.4×91.44 mm (H×V) |
| Bezel Area : | 155.3×94.3 mm (H×V) |
| Outline Dimension : | 165×104 mm (H×V) |
| Outline Depth : | 5.2±0.3 mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
| Display Mode : | TN, Normally White, Transmissive |
| Brightness : | 200 cd/m² (Typ.) |
| Contrast Ratio : | 400 : 1 (Typ.) (Transmissive) |
| Display Color : | 262K (6-bit) |
| Color Gamut : | 45% NTSC (CIE1931) |
| Response Time : | 5/11 (Typ.)(Tr/Td) |
| Viewing Angle : | 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction : | 6 o'clock |
| White color Chromaticity : | Wx:0.310; Wy:0.330 |
| Sunlight Readable : | N |
| Vertical Frequency : | 60Hz |
| Reverse Scan : | No |
| Time Controller (T-CON) : | Embedded T-CON |
Our Company Strength in LCD Screen Sourcing:
1. ISO9001 certificated, Factory Direct Supplied
2. Competitive Price and Short Lead-time
3. Professional Team with Rich Experiences in LCD screen international trade communication.
4. Small MOQ Support & Fast Response to Customers
5. Long Product Life Time
6. 1 Year warranty for our LCD screen replacements.
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| AE060RN01 | Innolux | 6.0" | 800×600 |
| F050A12-601 | Innolux | 5.0" | 480×854 |
| 85C02502-Y21 | Innolux | 2.5" | 320×240 |
| V260B2-P03 Rev.C2 | Innolux | 26.0" | 1366×768 |
| G070YG1-P01 | Innolux | 7.0" | 800×480 |
| F03215-01Z | Innolux | 3.2" | 360×480 |
| F0352A-01U | Innolux | 3.5" | 320×480 |
| F07020-01D | Innolux | 7.0" | 480×234 |
| HB101NA-01C | Innolux | 10.1" | 1280×800 |
| BP059IA-01A | Innolux | 5.9" | 720×1280 |
