Product Details:
|
| Product Number: | LM64C35P | Resolution: | 640×480 |
|---|---|---|---|
| C/R: | 30:1 | Backlight: | CCFL |
| High Light: | sharp lcd display panels,sharp lcd screen |
||

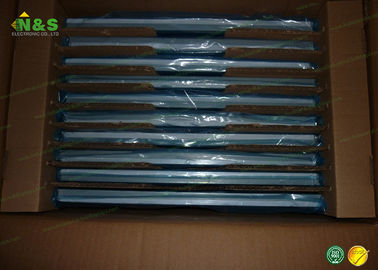

10.4 inch 640*480 LCD Screen LM64C35P Liquid crystal display
Panel Brand : SHARP
Panel Model : LM64C35P
Panel Type : CSTN-LCD , LCM
Panel Size : 10.4 inch
Resolution : 640(RGB)×480 , VGA
| Panel Size : | 10.4 |
|---|---|
| Dot Resolution : | 640(RGB)×480 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 76 PPI |
| Aspect Ratio : | 4:3 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.110×0.330 mm (H×V) |
| Pixel Pitch : | 0.330×0.330 mm (H×V) |
| Weight : | 500g (Typ.) |
| Active Area : | 211.175×158.375 mm (H×V) |
| Bezel Area : | 215.2×162.4 mm (H×V) |
| Outline Dimension : | 242.5×179.4 mm (H×V) |
| Outline Depth : | 11.5 (Max.) mm |
| Holes & Brackets : | Face mounting holes |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
We work closely with more than 540 enterprises all over the world, including large OEM factories, franchise distributors & well-known independent distributors in LCD screen replacements, We also cooperate with more than 40 countries or area resources: United states, Italy, Singapore, Korea, Taiwan, Germany, Malaysia & Japan, etc, we try our best to offer reliable sourcing at competitive price directly.
Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.
We can do for you:
Contact Person: savvy,ren
Tel: +8613302928193
