Product Details:
|
| Panel Size :: | 17.0 Inch | Resolution :: | 1280(RGB)×1024 , SXGA |
|---|---|---|---|
| Active Area :: | 337.92×270.336 Mm | Outline :: | 358.5×296.5×15.8 Mm |
| Surface :: | Antiglare, Hard Coating (3H) | Brightness :: | 300 Cd/m² (Typ.) |
| High Light: | auo lcd screen,auo lcd display |
||

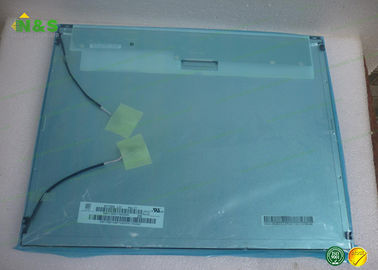

17.0 inch M170EG01 VD AUO LCM 1280×1024 300 1000:1 16.2M Of Desktop Monitor
M170EG01 VD Information
What is Our Advantage?
1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.
2. We can provide the one-stop purchase service.
3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.
4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.
5. Fast delivery.
6. Reasonable price.
Why Choose US:
1. Prompt reply within 12 hours.
2. Understand inquiry in any language.
3. Products with top quality.
4. Very competitive prices.
5. 6-year experience in industrial LCD Screen replacements.
6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.
7. Fabulous after-sale service.
| Panel Size : | 17.0 inch |
| Dot Resolution : | 1280(RGB)×1024 (SXGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 96 PPI |
| Aspect Ratio : | 5:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.088×0.264 mm (H×V) |
| Pixel Pitch : | 0.264×0.264 mm (H×V) |
| Weight : | 1.99Kgs (Typ.) |
| Surface : | Antiglare, Hard coating (3H) |
| Active Area : | 337.92×270.336 mm (H×V) |
| Bezel Area : | 341.6×274.0 mm (H×V) |
| Outline Dimension : | 358.5×296.5 mm (H×V) |
| Outline Depth : | 15.8 (Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Display Mode : |
TN, Normally White, Transmissive |
| Brightness : | 300 cd/m² (Typ.) |
| Contrast Ratio : | 1000 : 1 (Typ.) (Transmissive) |
| Display Color : | 16.2M (6-bit + FRC) |
| Color Gamut : | 72% NTSC (CIE1931) |
| Response Time : | 3.5/1.5 (Typ.)(Tr/Td) |
| Viewing Angle : | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity : | Wx:0.313; Wy:0.329 |
| White Variation : | 1.25/1.33 (Typ./Max)(9 points) |
| Sunlight Readable : | N |
| Vertical Frequency : | 60Hz |
| Reverse Scan : | No |
| Total Power Consumption : |
25.8 W(Typ.) |
