Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ049B5DG04 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 4.9 Inch |
| Resolution: | 320(RGB)×96 | Display Mode: | TN, Normally White, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
Normally White LQ049B5DG04 Sharp LCD Panel 4.9 inch LCM 320×96 350 60:1 262K CCFL TTL
LQ049B5DG04 Specification
| Panel Brand : | SHARP |
| Panel Model : | LQ049B5DG04 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 4.9 inch |
| Resolution : | 320(RGB)×96 |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 120×36 mm |
| Outline : | 142×53.5 mm |
| Surface : | Antiglare |
| Brightness : | 350 cd/m² (Typ.) |
| Contrast Ratio : | 60:1 (Min.) |
| Display Colors : | 262K (6-bit) |
| Response Time : | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle : | 65/65/40/65 (Typ.)(CR≥10) (L/R/U/D) |
| Lamp Type : | 1 pcs CCFL Without Driver |
| Signal Interface : | Parallel RGB (1 ch, 6-bit) , 30 pins |
| Input Voltage : | 5.0/10.0/-10.0V (Typ.)(VSH/VGH/VGL) |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
| LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
| LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
| LS024Q8UC92 | SHARP | 2.4" | 240×320 |
| LK235D3HA0S | SHARP | 23.6" | 1920×1080 |
| LS055D1SX04 | SHARP | 5.5" | 2160×3840 |
| Panel Size : | 4.9 inch |
| Dot Resolution : | 320(RGB)×96 |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 67 PPI |
| Aspect Ratio : | >3:1 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.125×0.375 mm (H×V) |
| Pixel Pitch : | 0.375×0.375 mm (H×V) |
| Weight : | 110±20g |
| Surface : | Antiglare |
| Active Area : | 120×36 mm (H×V) |
| Bezel Area : | 125.6×41.6 mm (H×V) |
| Outline Dimension : | 142×53.5 mm (H×V) |
| Outline Depth : | 13.0 (Typ.) mm |
| Holes & Brackets : | Rear mounting holes (4-Ф2.2) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Packaging & Delivery
· Delivery Lead Time :2~3 weeks
· Minimum Order :1 pcs LCD Panel
· Supply Ability :100 PCS / Per Day

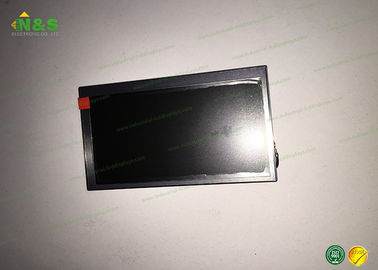

LQ049B5DG04 Picture
