Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ042T5DZ11B |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 4.2 Inch |
| Resolution: | 480×272(RGB) , WQVGA | Display Mode: | ASV, Normally Black, Transmissive |
| High Light: | sharp lcd display panels,sharp lcd screen |
||
Antireflection LQ042T5DZ11B Sharp 4.2 inch LCD Panel LCM 480×272 500 1600:1 262K WLED TTL
LQ042T5DZ11B Specification
| Panel Brand : | SHARP |
| Panel Model : | LQ042T5DZ11B |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 4.2 inch |
| Resolution : | 480×272(RGB) , WQVGA |
| Display Mode : | ASV, Normally Black, Transmissive |
| Active Area : | 92.88×52.632 mm |
| Outline : | 102.5×69 mm |
| Surface : | Antiglare, Antireflection |
| Brightness : | 500 cd/m² (Typ.) |
| Contrast Ratio : | 1600:1 (Typ.) |
| Display Colors : | 262K (6-bit) , CIE1931 64% |
| Response Time : | 15/5 (Typ.)(Tr/Td) |
| Viewing Angle : | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | WLED Embedded (LED Driver) |
| Signal Interface : | CMOS (1 ch, 6-bit) , 50 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 4.2 inch |
| Dot Resolution : | 480×272(RGB) (WQVGA) |
| Pixel Configuration : | RGB Horizontal Stripe |
| Pixel Density : | 131 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.1935×0.0645 mm (H×V) |
| Pixel Pitch : | 0.1935×0.1935 mm (H×V) |
| Weight : | 120g (Typ.) |
| Surface : | Antiglare, Antireflection |
| Active Area : | 92.88×52.632 mm (H×V) |
| Bezel Area : | 94.48×54.27 mm (H×V) |
| Outline Dimension : | 102.5×69 mm (H×V) |
| Outline Depth : | 12.0 mm |
| Holes & Brackets : | Rear mounting holes (4-Φ2) |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
| Panel Model | Brand | Size | Resolution |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
| LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |

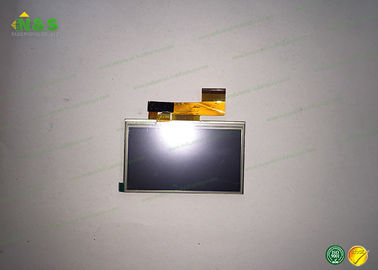

LQ042T5DZ11B Picture
