Product Details:
|
| Panel Brand: | Tianma | Panel Model: | TM043NBH03 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 4.3 Inch |
| Resolution: | 480(RGB)×272 , WQVGA | Display Mode: | TN, Normally White, Transmissive |
| Highlight: | tft lcd screen,tft lcd panel |
||
Antiglare TM043NBH03 Tianma LCD Panel 4.3 inch with 95.04×53.856 mm Active Area
TM043NBH03 Specification
| Panel Brand : | TIANMA |
| Panel Model : | TM043NBH03 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 4.3 inch |
| Resolution : | 480(RGB)×272 , WQVGA |
| Display Mode : | TN, Normally White, Transmissive |
| Active Area : | 95.04×53.856 mm |
| Outline : | 105.5×67.2 mm |
| Surface : | Antiglare |
| Brightness : | 280 cd/m² (Typ.) |
| Contrast Ratio : | 450:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 50% |
| Response Time : | 20 (Typ.)(Tr+Td) |
| Viewing Angle : | 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 5S2P WLED Without Driver |
| Signal Interface : | Parallel RGB (1 ch, 8-bit) + SPI , 50 pins |
| Input Voltage : | 3.3V (Typ.) |
| Panel Size : | 4.3 inch |
| Dot Resolution : | 480(RGB)×272 (WQVGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 128 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.066×0.198 mm (H×V) |
| Pixel Pitch : | 0.198×0.198 mm (H×V) |
| Weight : | TBD |
| Surface : | Antiglare |
| Active Area : | 95.04×53.856 mm (H×V) |
| Outline Dimension : | 105.5×67.2 mm (H×V) |
| Outline Depth : | 4.1 mm |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Embeded (4-wire Resistive) |
Our Company Strength in LCD Screen Sourcing:
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LQ055T3SX04 | SHARP | 5.5" | 1080×1920 |
| LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
| LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
| LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
| LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

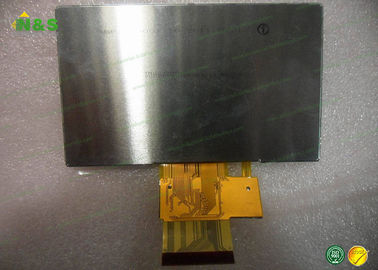

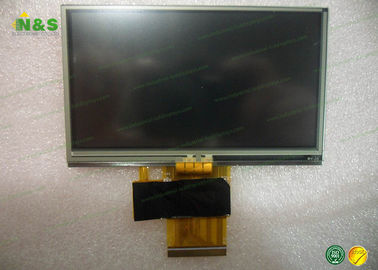

TM043NBH03 Picture
