Product Details:
|
| Panel Size: | 2.8 Inch | Resolution: | 480(RGB)×640 , VGA |
|---|---|---|---|
| Display Mode: | Vistarich, Normally Black, Transmissive | Signal Interface: | Parallel RGB (1 Ch, 6-bit) , 45 Pins |
| Highlight: | industrial touch screen display,industrial lcd panel |
||
| Panel Size : | 2.8 inch |
|---|---|
| Dot Resolution : | 480(RGB)×640 (VGA) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 287 PPI |
| Aspect Ratio : | 3:4 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.0295×0.0885 mm (H×V) |
| Pixel Pitch : | 0.0885×0.0885 mm (H×V) |
| Weight : | 23.4g |
| Surface : | Clear, Hard coating (3H) |
| Active Area : | 42.48×56.64 mm (H×V) |
| Bezel Area : | 44.48×58.64 mm (H×V) |
| Outline Dimension : | 49.5×70.2 mm (H×V) |
| Outline Depth : | 3.56±0.25 mm |
| Holes & Brackets : | Without |
| Landscape or Portrait : | Portrait type |
| Touch Panel : | Embeded (4-wire Resistive, Film / Glass) |
| Display Mode : | Vistarich, Normally Black, Transmissive |
|---|---|
| Brightness : | 220 cd/m² (Typ.) |
| Contrast Ratio : | 280 : 1 (Typ.) (Transmissive) |
| Display Color : | 65K/262K (6-bit) |
| Response Time : | 18/13 (Typ.)(Tr/Td) |
| Viewing Direction : | Symmetry |
| White color Chromaticity : | Wx:0.290; Wy:0.310 |
| White Variation : | 1.43 (Max.)(9 points) |
| Sunlight Readable : | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| L3F04X-80401C | Epson | 0.48" | 1024×768 |
| L3D13U-55G00 | Epson | 1.3" | 1920×1080 |
| L3D07U-82G00 | Epson | 0.74" | 1920×1080 |
| L3D07U-81G00 | Epson | 0.74" | 1920×1080 |
| L3F04S-80400C | Epson | 0.47" | 800×600 |
| L3C07U-96G00 | Epson | 0.74" | 1920×1080 |
| L3C07U-95G00 | Epson | 0.74" | 1920×1080 |
| L3C07U-86G11 | Epson | 0.74" | 1920×1080 |
| L3C07U-86G00 | Epson | 0.74" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
Company Strength:
1>ISO9001 certificated.
2> Competitive Price and Short Lead-time
3> Professional Team with Rich Experiences in LCD Screen International trade.
4> Small MOQ Support & Fast Response to Customers
5> Long Product Life Time
6> Each LCD will be tested pcs by pcs before shipment to guarantee the quality.
7> We are distributor for the hard-to-find LCD Screen Panels, contained but not limited to Medical LCD Panel, Aerospace LCD Display, Gaming LCD Screen, Military LCD Replacements, Kiosk LCD Panels, Transportation LCD Panels.
8> The LCD brands we can provide to you contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more.

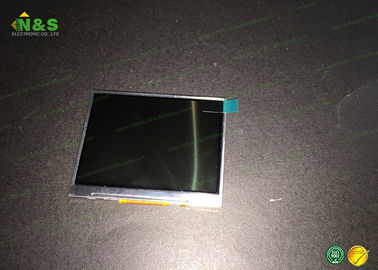

L4S00242P00 Picture
