Product Details:
|
| Panel Brand: | Innolux | Panel Model: | M215HJJ-L30 Rev.B1 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD , LCM | Panel Size: | 21.5 Inch |
| Resolution: | 1920(RGB)×1080 , FHD | Display Mode: | MVA, Normally Black, Transmissive |
| Highlight: | lcd display panel,innolux lcd screen |
||
M215HJJ-L30 Rev.B1 Innolux LCD Panel 21.5 inch for Desktop Monitor
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
M215HJJ-L30 Rev.B1 Product Information
| Panel Brand : | INNOLUX |
| Panel Model : | M215HJJ-L30 Rev.B1 |
| Panel Type : | a-Si TFT-LCD , LCM |
| Panel Size : | 21.5 inch |
| Resolution : | 1920(RGB)×1080 , FHD |
| Display Mode : | MVA, Normally Black, Transmissive |
| Active Area : | 476.064×267.786 mm |
| Outline : | 495.6×292.2×11.5 mm |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Brightness : | 250 cd/m² (Typ.) |
| Contrast Ratio : | 3000:1 (Typ.) |
| Display Colors : | 16.7M (8-bit) , CIE1931 72% |
| Response Time : | 15/5 (Typ.)(Tr/Td) |
| Viewing Angle : | 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) |
| Frequency : | 60Hz |
| Lamp Type : | 4 strings WLED Without Driver |
| Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
| Input Voltage : | 5.0V (Typ.) |
Our Company Strength in LCD Screen Sourcing:
| Panel Size : | 21.5 inch |
| Dot Resolution : | 1920(RGB)×1080 (FHD) |
| Pixel Configuration : | RGB Vertical Stripe |
| Pixel Density : | 102 PPI |
| Aspect Ratio : | 16:9 (H:V) |
| Form Factor : | Flat Rectangle Display |
| Dot Pitch : | 0.08265×0.24795 mm (H×V) |
| Pixel Pitch : | 0.24795×0.24795 mm (H×V) |
| Weight : | 1.91/2.10Kgs (Typ./Max.) |
| Surface : | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area : | 476.064×267.786 mm (H×V) |
| Bezel Area : | 479.26×270.99 mm (H×V) |
| Outline Dimension : | 495.6×292.2 mm (H×V) |
| Outline Depth : | 8.3/11.5 (Typ./Max.) mm |
| Holes & Brackets : | Side mounting holes (4-M4) on up, down bezel |
| Landscape or Portrait : | Landscape type |
| Touch Panel : | Without |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| P079ZCZ-3Z2 | Innolux | 7.9" | 768×1024 |
| M315DJJ-Q01 | Innolux | 31.5" | 3840×2160 |
| V320BJ6-Q01 | Innolux | 31.5" | 1366×768 |
| V650DK2-QS2 | Innolux | 65" | 3840×2160 |
| F055A15-6T1 | Innolux | 5.5" | 720×1280 |
| F050A19-601 | Innolux | 5.5" | 720×1280 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

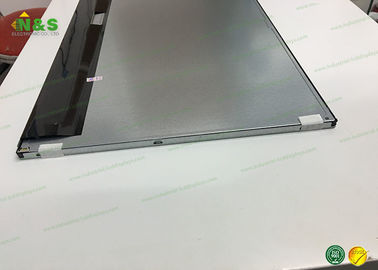

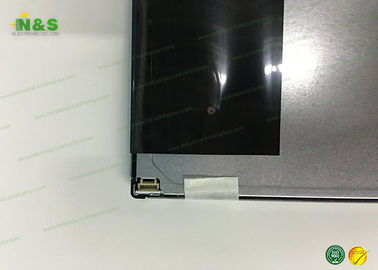

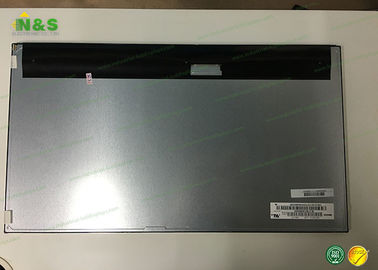

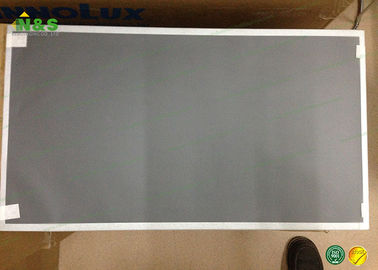

M215HJJ-L30 Rev.B1 Picture
